جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب
جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب

جرافة نقل التربة القياسية للحفارة سعة 20 طنًا و1.0 متر مكعب

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج
ملخص

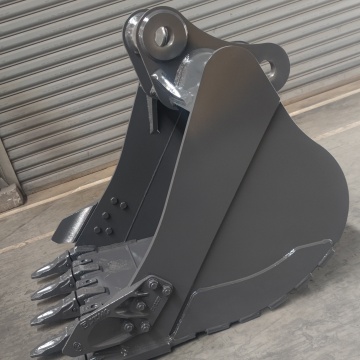

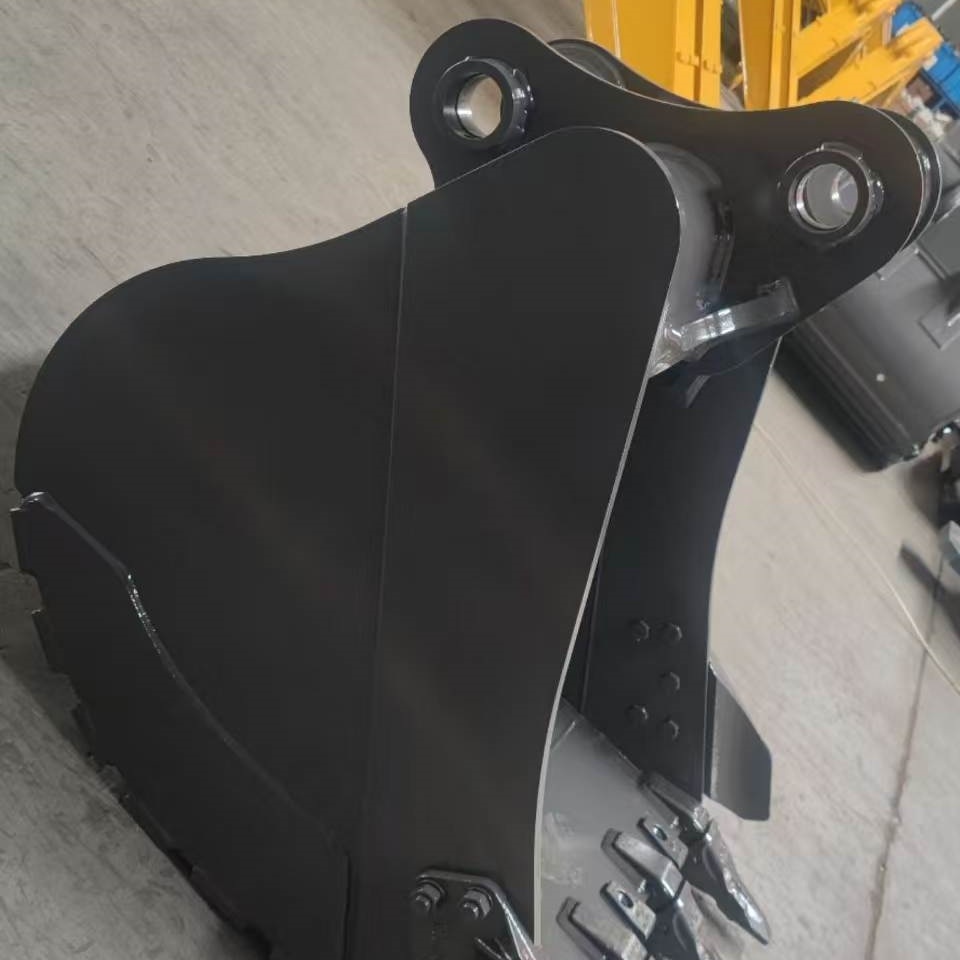

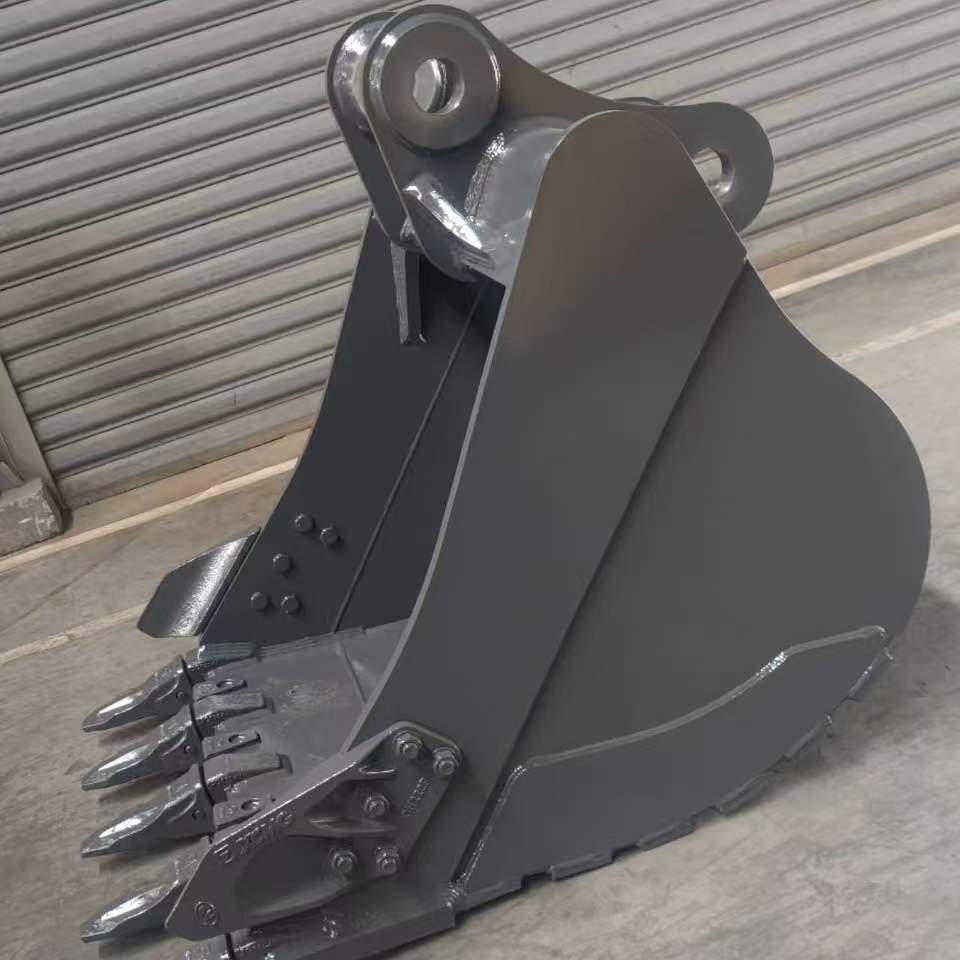

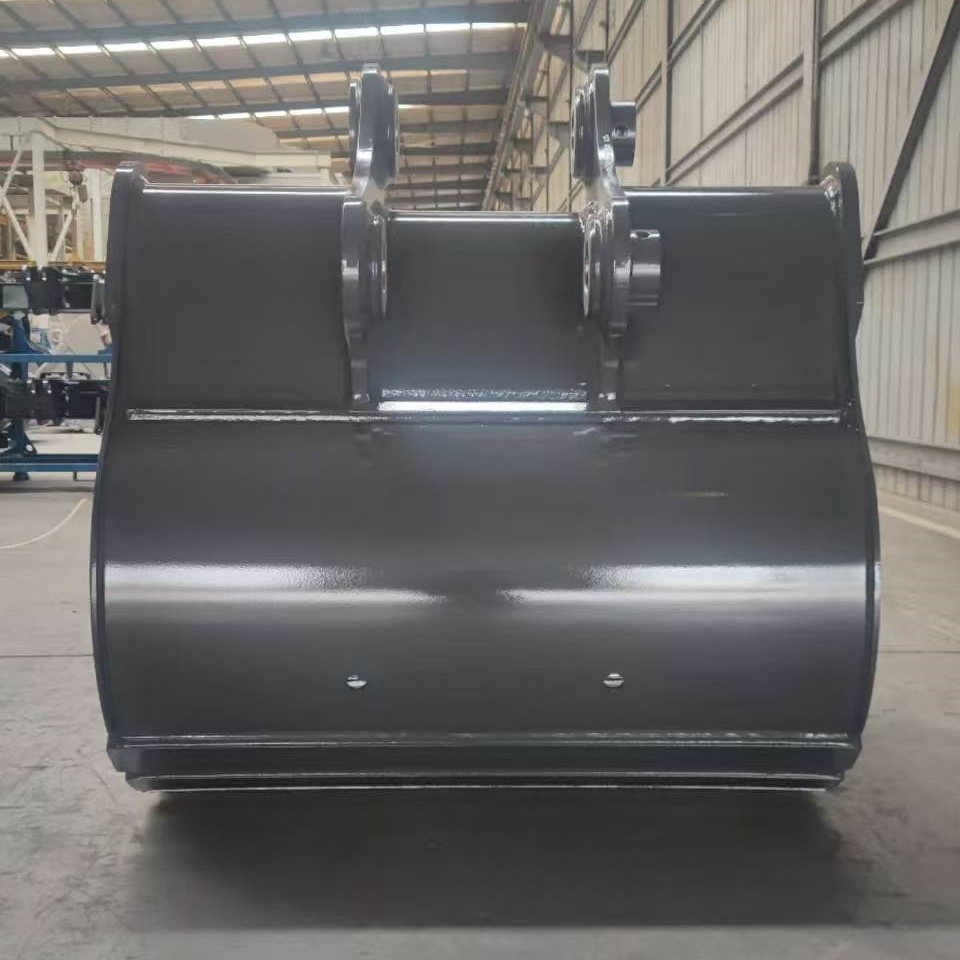

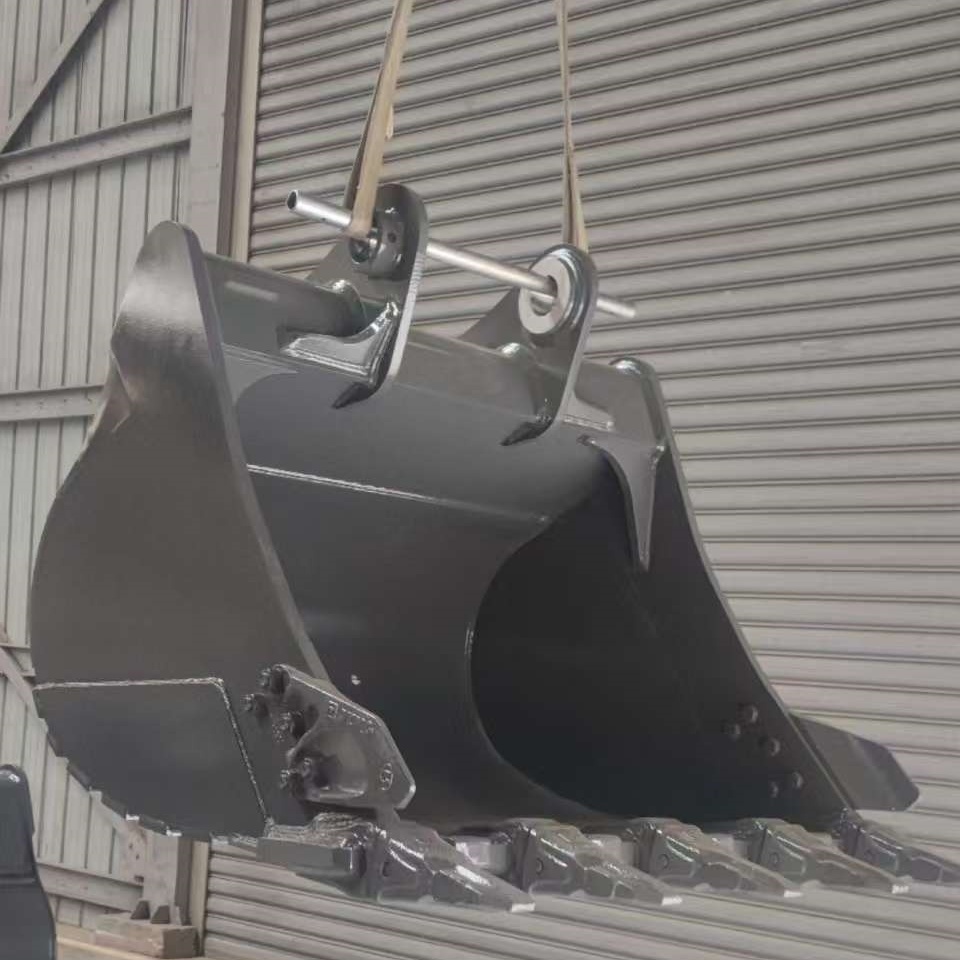

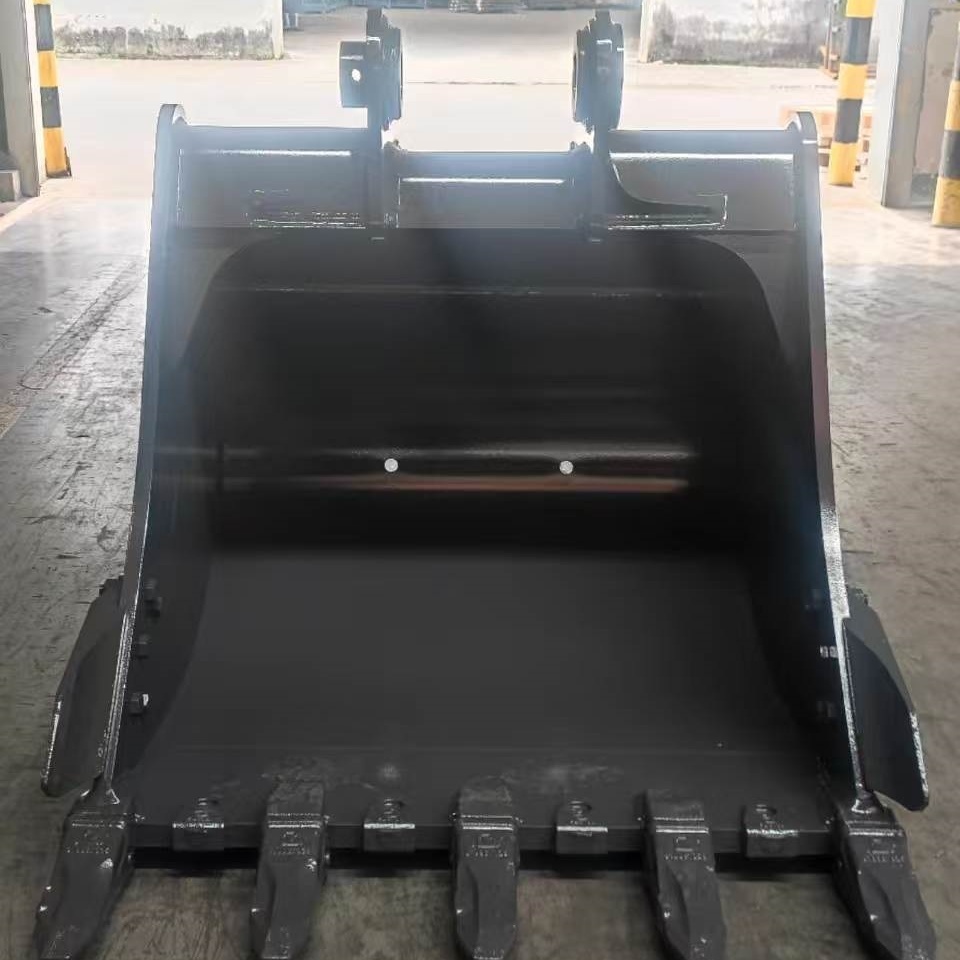

الدلو القياسي ذو 20 طن الذي تم إنتاجه بواسطة Guoren Xifang لديه حجم دلو يبلغ 1.0 متر مكعب.
المواد هي: الفولاذ عالي القوة WH60C، والفولاذ الهيكلي Q355B، والفولاذ المقاوم للتآكل NM400، مع لوح شفرة بسمك 40 مم. لقد تم تحسين التجويف الداخلي لتحسين كفاءة التحميل والتفريغ.
يتم استخدامه بشكل أساسي لحفر وتحميل التربة العادية والرمل والحصى والمواد السائبة الأخرى. إنها مجهزة بأجزاء مقاومة للتآكل من سلسلة PC200 GET، والتي تتمتع بتوافق جيد مع السوق وتكاليف صيانة منخفضة على المدى الطويل.
يمكن تخصيص لوحات الأذن والأبعاد والألوان وفقًا للمتطلبات.
default name
تحديد
model Bucket Types ton-class Bucket capacity(m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions
20T-1.0m³ Earthmoving bucket 20 1 1301.1
WH60C
Q355B
NM400
40
Left-side tooth: DH220L
Right-side tooth: DH220R
Retaining clip : PC200R
Pin: PC200 PIN
Tooth point : 205-70-19570 Tooth adapter : ZD-2211AD
General earthwork and loose materials
ميزات المنتج الرئيسية
1. نوع الجرافة الانسيابي: التحميل السريع، التفريغ النظيف، عدم التصاق المواد.
2. الفولاذ المركب + لوحة الشفرة 40 مم: مقاومة للاهتراء، عمر خدمة طويل.
3. الحصول على الجزء PC200: الجزء القياسي، سهل الاستبدال وتحديد الموقع.
4. الإنتاج الذاتي للمصنع: يتم تخصيص آذان الدلو وفقًا لأحجام الحفارات ذات العلامات التجارية المختلفة.
