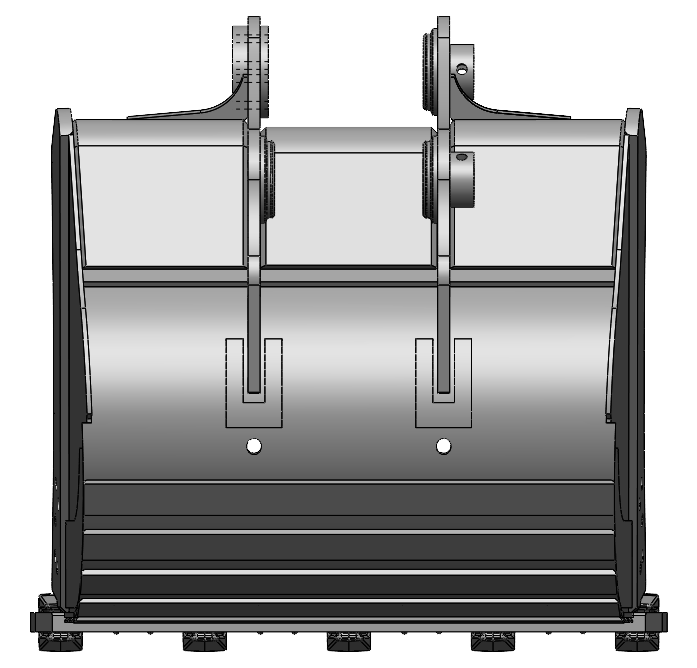

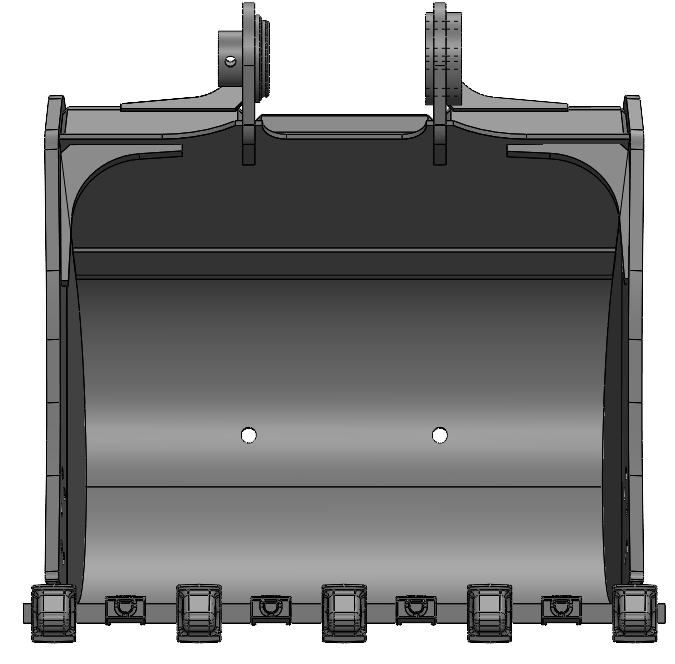

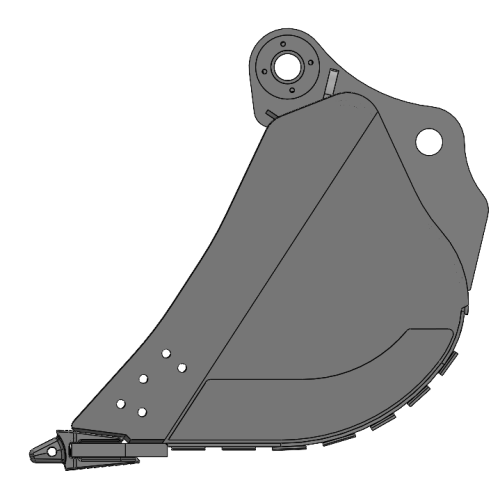

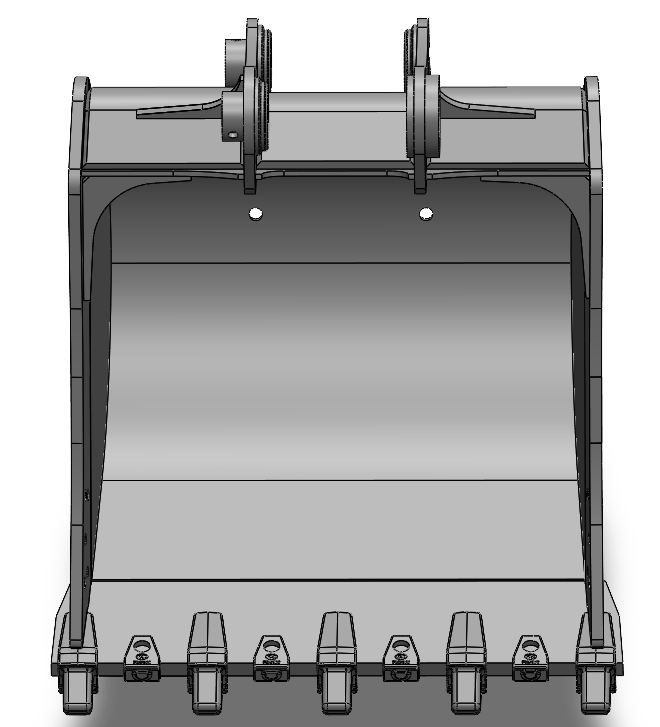

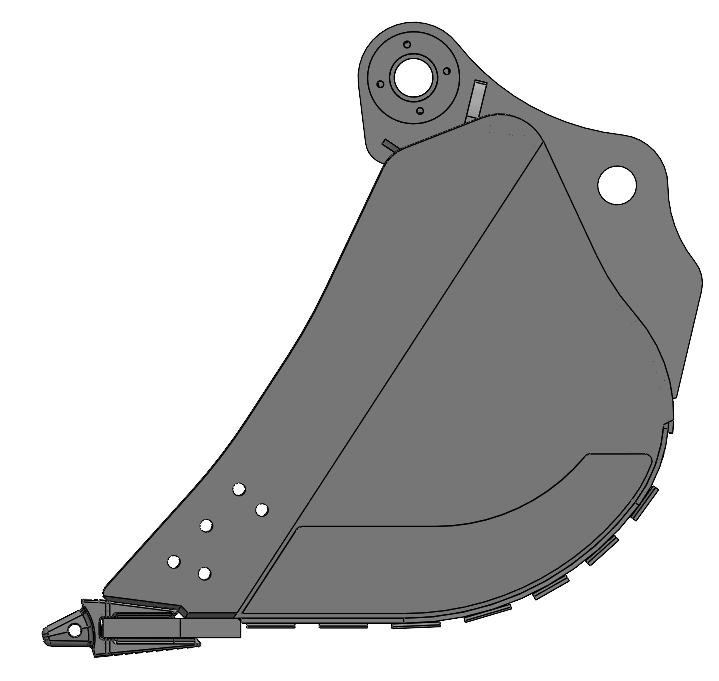

20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى
20T 1.0m³ دلو مقوى

20T 1.0m³ دلو مقوى

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

20T، 1.0m³، النوع المقوى، دلو عام لنقل التربة للحفارات سعة 20 طنًا.
يتكون الجسم من ثلاث ألواح فولاذية ذات وظائف محددة: WH60C للأنبوب السفلي من أجل المتانة، Q355B لأنبوب الإطار من أجل الصلابة، وNM400 للحماية من التآكل على الألواح السفلية والجانبية للجرافة. الأجزاء الصلبة مصنوعة بقوة، والأجزاء المقاومة للتآكل مصنوعة من مقاومة للتآكل.
يمكن تجهيزها لـ Komatsu، وCaterpillar، وSany، وXCMG، وDoosan، وHitachi، والآلات من فئة 20 طنًا. يمكنه التعامل مع التربة متوسطة الصلابة والتربة والصخور المختلطة والحفر المتكرر كل يوم دون أي مشكلة.
سعة قياسية وهيكل عالمي، مناسب لتخصيص الجرافات على مستوى الأسطول، ومناسب أيضًا للتجار للتخزين على دفعات.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Main Material Cutting Edge Thickness (mm) Optional Castings  Applicable Working Conditions Compatible model
20T-1.0m³ Reinforced bucket 20 1
WH60C
Q355B
NM400
40
Right-side tooth DH220R
Left-side tooth DH220L
Retaining ring PC200-R
Pin PC200PIN
Tooth point 19570RC-3
Tooth adapter ZD-2211AD

General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone. Compatible with mainstream 20-ton class models (e.g., Komatsu PC200/220, Caterpillar 320/323, Sany SY205/215, XCMG XE200/215, Doosan DH220, Hitachi ZX200).
default name
المزايا الأساسية لـ Guorun
بناء:
لقد خضع الإطار لتحسين القوة. يمكن تشتيت حمل الصدم أثناء الحفر، ولن تكون هناك مشكلة حتى لو تم تنفيذ العمل بشكل مستمر لفترة طويلة وبتردد عالٍ.
شفرة:
40 مم NM400 - يمكنه تحمل تأثير الحجارة المكسرة، كما أن التآكل بطيء. يمكن أن تستمر الشفرة لفترة أطول.
المسبوكات:
تتميز المجموعة الكاملة من DH220 - أسنان الدلو، والمحول، والدبابيس، والمثبتات - بمطابقة دقيقة للتسامح، مما يجعلها ملائمة للتفكيك والصيانة والتركيب في الموقع.
شكل دلو:
تم تعديل التشكيل الجانبي 1.0 متر مكعب، مع مقاومة اختراق منخفضة. يمكن ملؤها بالكامل وتفريغها بشكل نظيف، مما يؤدي إلى كفاءة عالية بشكل طبيعي.
