الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو تحريك التربة> 20T 1.3m³ دلو تحريك التربة

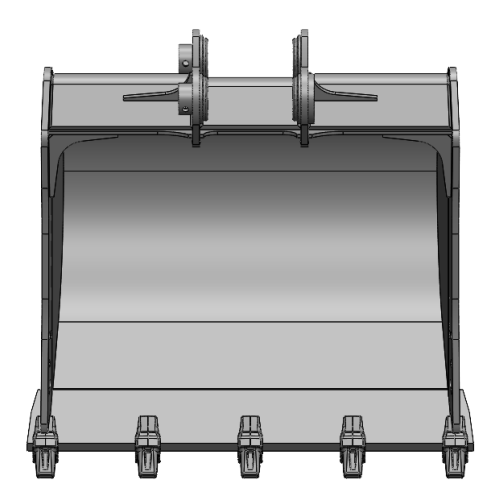

20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة
20T 1.3m³ دلو تحريك التربة

20T 1.3m³ دلو تحريك التربة

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

مجرفة حفر 20 طن لحفر التربة العادية والمواد السائبة.
حجم كبير 1.3 متر مكعب العرض 1631.3 ملم. يمكنها حمل الكثير بمجرفة واحدة، وبالتالي تزداد الكفاءة الإجمالية.
ثلاثة أنواع من المواد: أنبوب WH60C مقاوم للاهتراء، وقوة أنبوب Q355B، ولوحة السكين مصنوعة من الفولاذ المقوى NM400 بقطر 40 مم، مع صلابة جيدة ومقاومة للصدمات، ومتينة للغاية.
يمكن تركيبه على: كوماتسو PC200/220، كاتربيلر 320/323، ساني SY205/215، XCMG XE200/215، دوسان DH220، هيتاشي ZX200.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings  Applicable Working Conditions Compatible model
20T-1.3m³ Earthmoving bucket 20 1.3 1631.3
WH60C
Q355B
NM400
40
Right-hand tooth DH220R
Left-hand tooth DH220L
Retaining ring J350-R
Pin J350-P
Tooth point 1U3352
Tooth adapter 3G8354V
General earthwork and loose materials Compatible with mainstream 20-ton class models (e.g., Komatsu PC200/220, Caterpillar 320/323, Sany SY205/215, XCMG XE200/215, Doosan DH220, Hitachi ZX200).
الميزات الرئيسية لجرافة نقل التربة الخاصة بالحفارات من Guo Run
سعة:
1.3 متر مكعب. تم تعديل الكفاف. المجرفة ناعمة والتفريغ نظيف. كفاءة الدورة الواحدة عالية.
متانة:
تتألف من WH60C، Q355B، وNM400. يمكنها تحمل التربة والصخور مع مقاومة التآكل.
شفرة:
40 ملم NM400. يمكنها تحمل الصدمات القوية والتآكل الشديد. إنها مناسبة لعمليات الحفر المتكررة.
بناء:
تصميم معزز. يظل شكل الجرافة دون تغيير تحت الحمل الثقيل، مما يضمن الأداء المستقر.
الملحقات: يمكن توفير أسنان مصبوبة (يسار ويمين)، محول، دبوس، ومشبك حلقي. دقة التثبيت عالية، كما أنها مريحة للاستبدال في الموقع.
تخصيص OEM/ODM
OEM: يتم الإنتاج وفقًا لعلامتك التجارية والتعبئة والمواصفات.
ODM: قم بتخصيص سعة الجرافة والعرض والمواد وسمك الشفرة وشكل السن وطبقة الطلاء بناءً على رسوماتك أو النموذج المستهدف.
