الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو مقوى> دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب
دلو حفار 20 طن 1.0 متر مكعب

دلو حفار 20 طن 1.0 متر مكعب

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

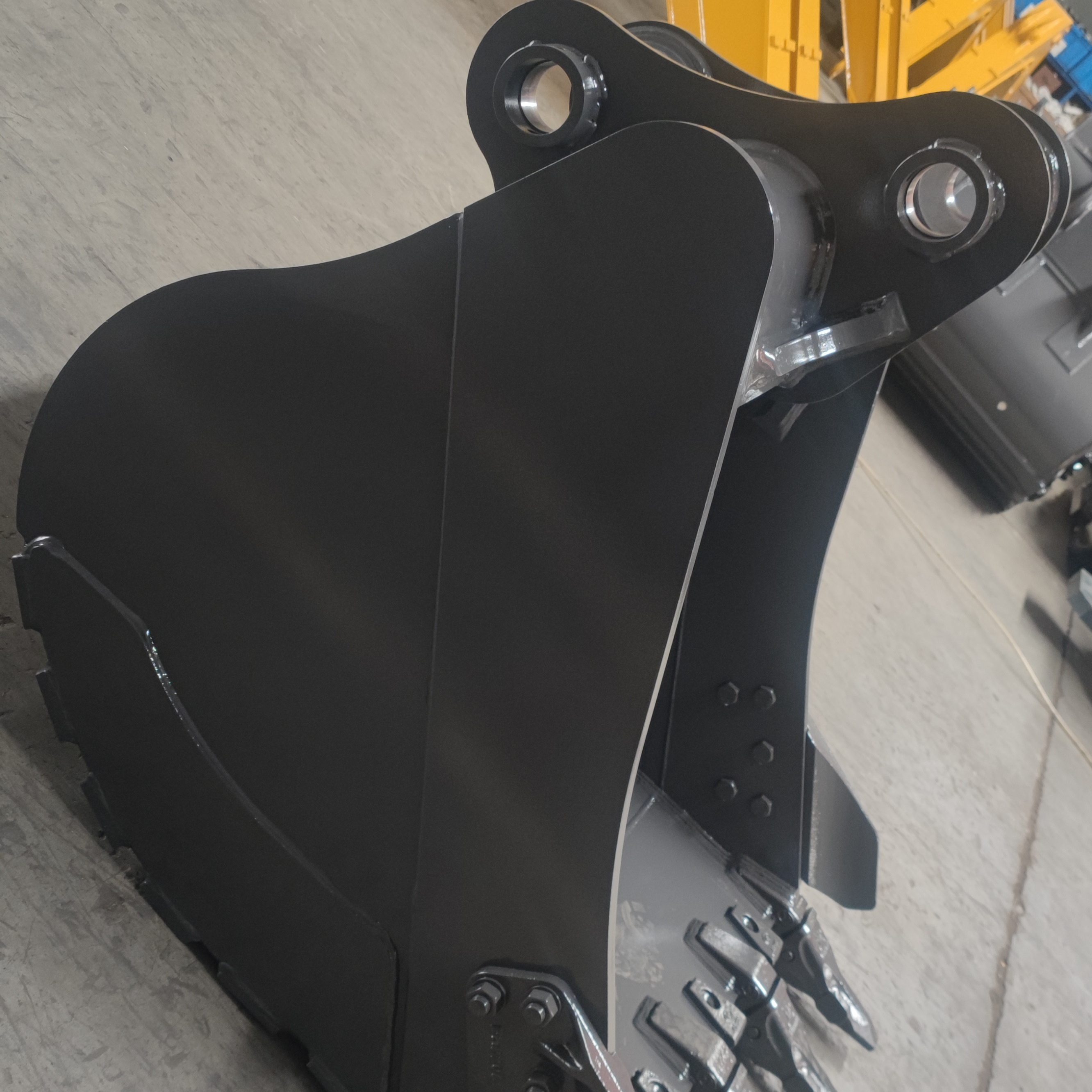

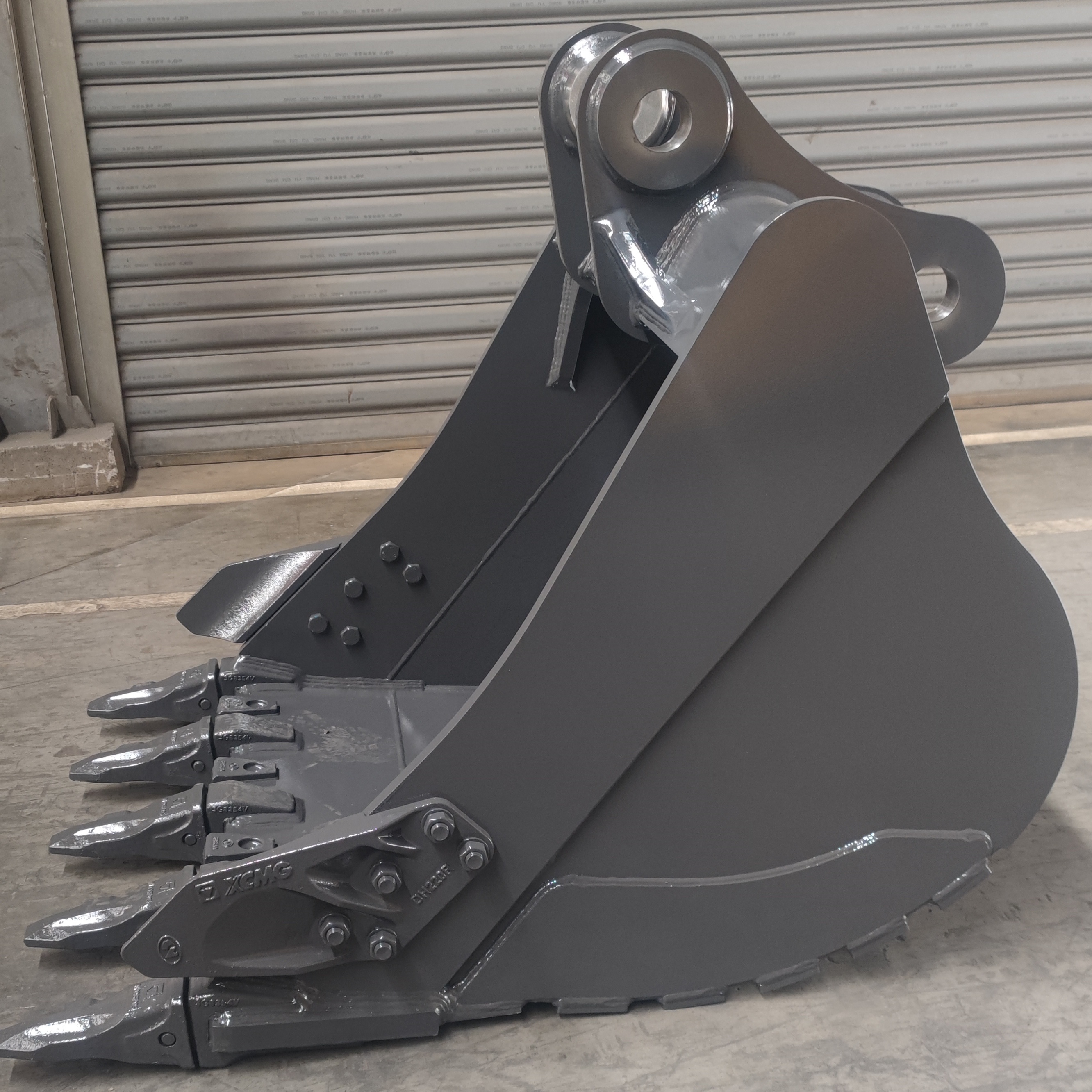

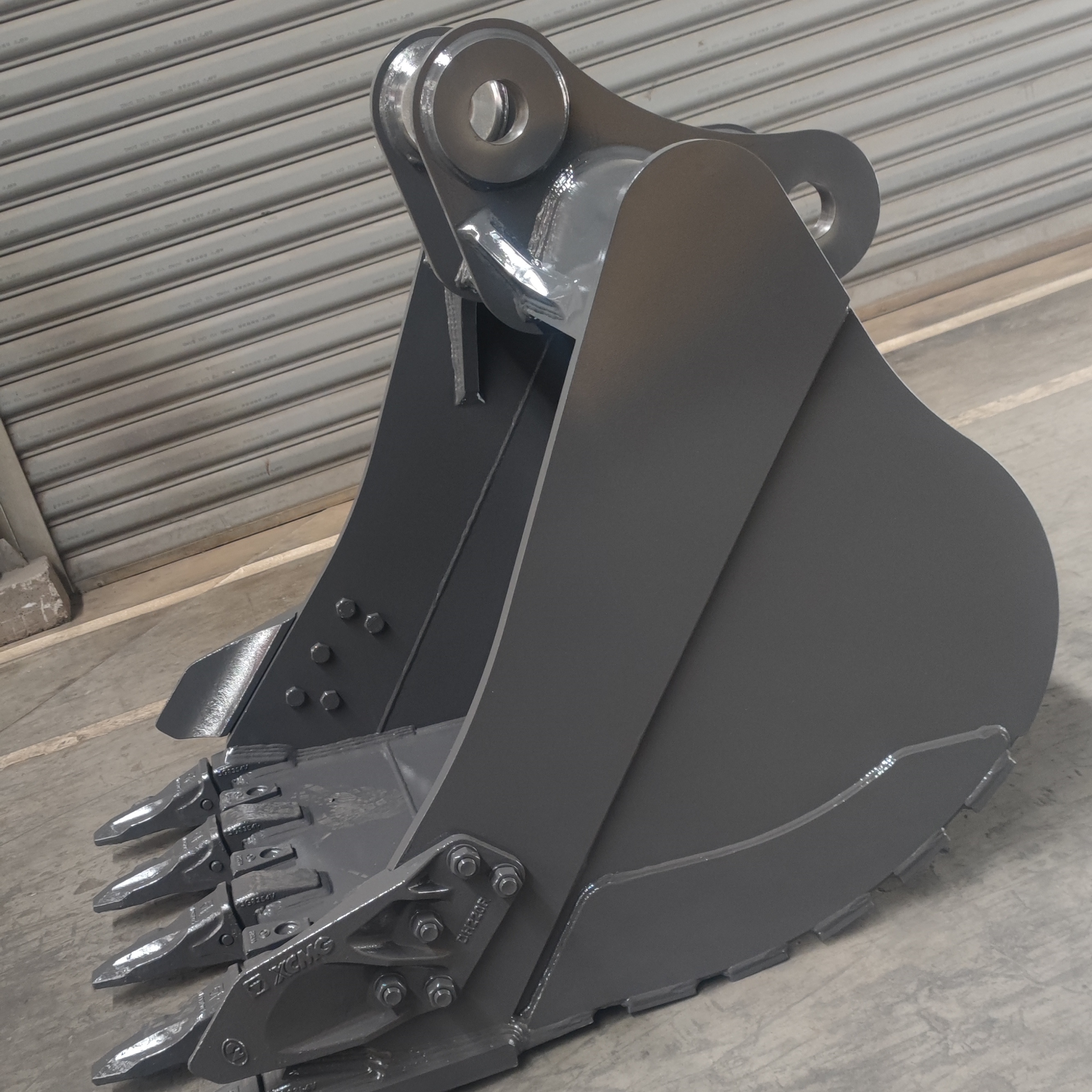

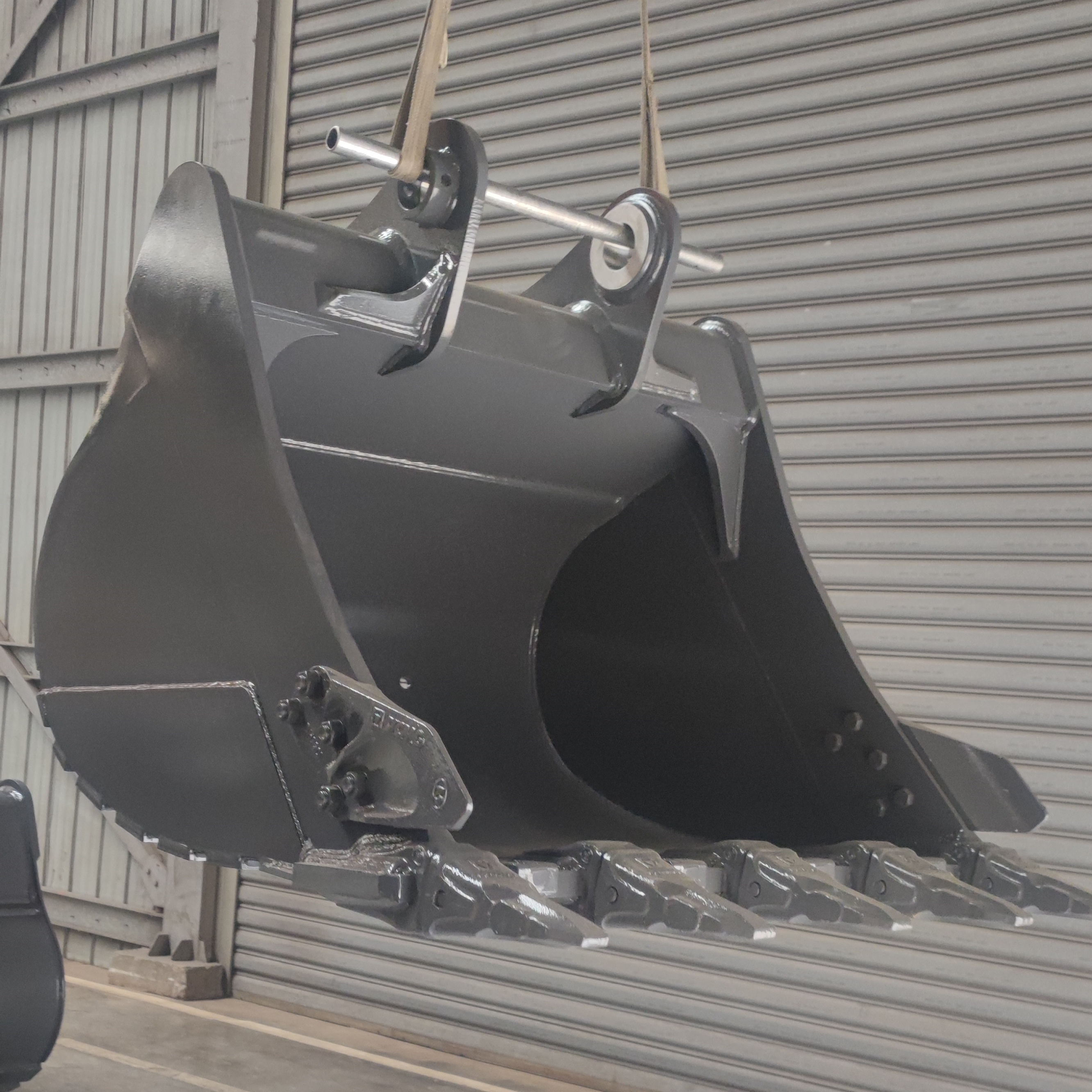

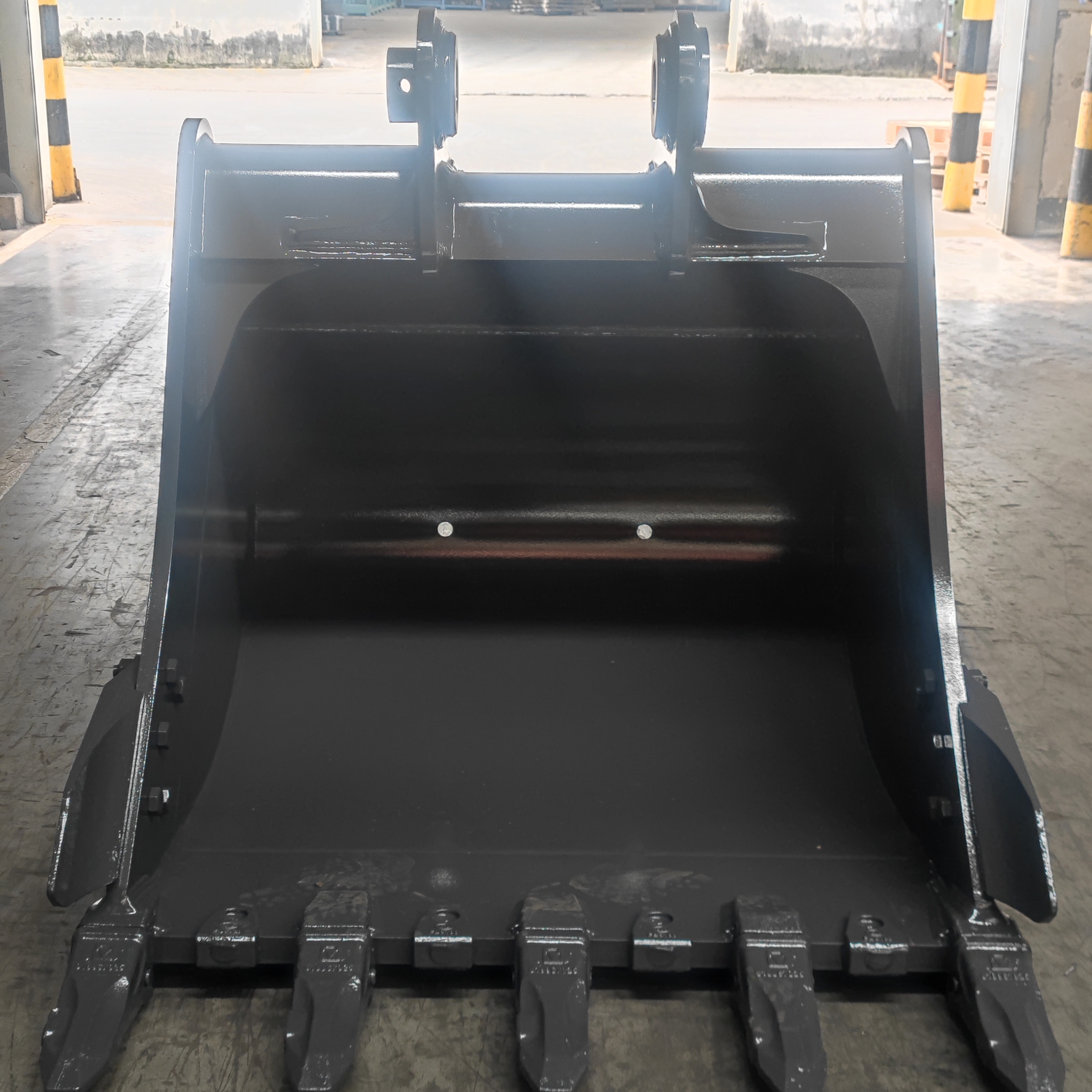

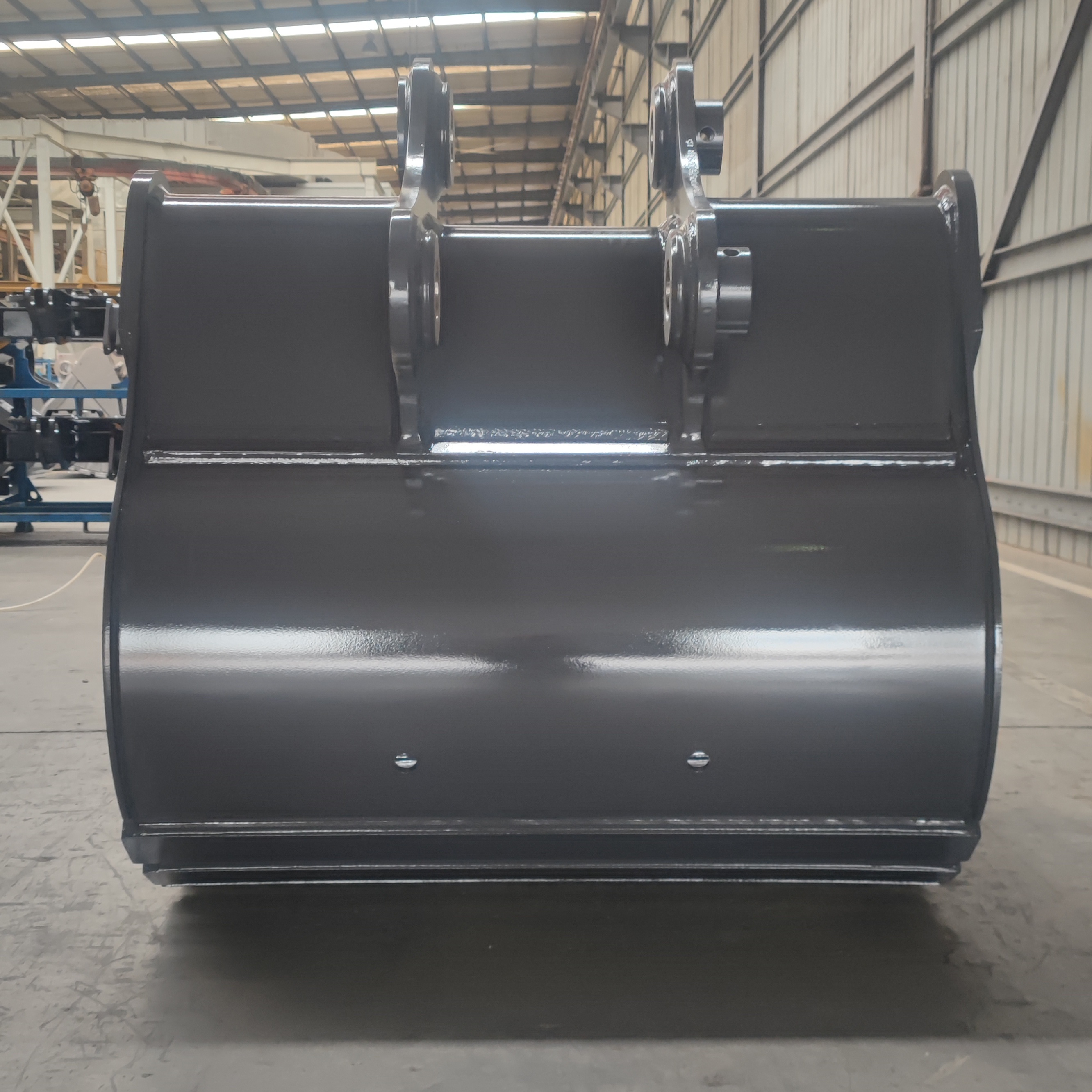

متوافق مع جميع موديلات الحفارات السائدة بوزن 20 طن. يستخدم مزيجًا من المواد المركبة المقاومة للتآكل (WH60C، Q355B، وNM400) ويتميز بحافة قطع سميكة 40 مم. يضمن الهيكل المعزز الشامل صلابة عالية ومقاومة للصدمات. وهي مجهزة بشكل قياسي بأسنان عالمية من سلسلة J350، وهي توفر توافقًا واسع النطاق وتوفر أداءً مستقرًا، ومعدلات فشل منخفضة، وفعالية ممتازة من حيث التكلفة في التطبيقات التي تتضمن نقل التربة، والتربة متوسطة الصلابة، والتربة التي تحتوي على كميات قليلة من الصخور المكسرة.
default name
تحديد

model Bucket Types ton-class Bucket capacity(m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions
20T-1.0m³ Reinforced bucket 20 1 1304
WH60C
Q355B
NM400
40
Right-hand tooth DH220R
Left-hand tooth DH220L
Retaining ring J350-R
Tooth pin J350-P
Bucket tooth S1U3352RC-S
Tooth adapter 3G8354V
General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone.
تكنولوجيا الإنتاج والتجهيز
تخضع المواد الخام لإعادة فحص المواد عند الدخول؛ يتم استخدام القطع بالليزر عالي الطاقة والثني/التشكيل باستخدام الحاسب الآلي. تضمن الأدوات والتركيبات المتخصصة تحديد المواقع بدقة ودقة الأبعاد للتجميع بأكمله. يتم استخدام اللحام الآلي متعدد الطبقات والممرات المتعددة للدرزات الحرجة، مع تطبيق التسخين المسبق على قواعد الأسنان ومناطق لحام لوحة القطع للتخلص من ضغوط اللحام. بعد اللحام، تخضع الوحدة بأكملها لعملية السفع بالخردق لإزالة الصدأ وتخفيف الضغط المتبقي، تليها عملية طلاء متعدد الطبقات مضاد للتآكل؛ يتم تخليص المنتجات النهائية للتخزين والشحن فقط بعد اجتياز عمليات التفتيش الشاملة لكل عنصر على حدة.
default name
التوافق
متوافق مع الحفارات السائدة من فئة 20 طن (على سبيل المثال، Komatsu PC200/220، Caterpillar 320/323، Sany SY205/215، XCMG XE200/215، Doosan DH220، Hitachi ZX200). يتميز بتصميم قياسي معزز للجرافة بسعة 1.0 متر مكعب، مصنوع من مركب من مواد WH60C، وQ355B، وNM400. مجهزة بحافة قطع بسمك 40 مم ومتوافقة مع أسنان الجرافة من سلسلة J350؛ يوفر أداءً ثابتًا في التربة متوسطة الصلابة والظروف الصخرية.
default namedefault namedefault name
