الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو مقوى> 21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى
21T-0.9m³ دلو مقوى

21T-0.9m³ دلو مقوى

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

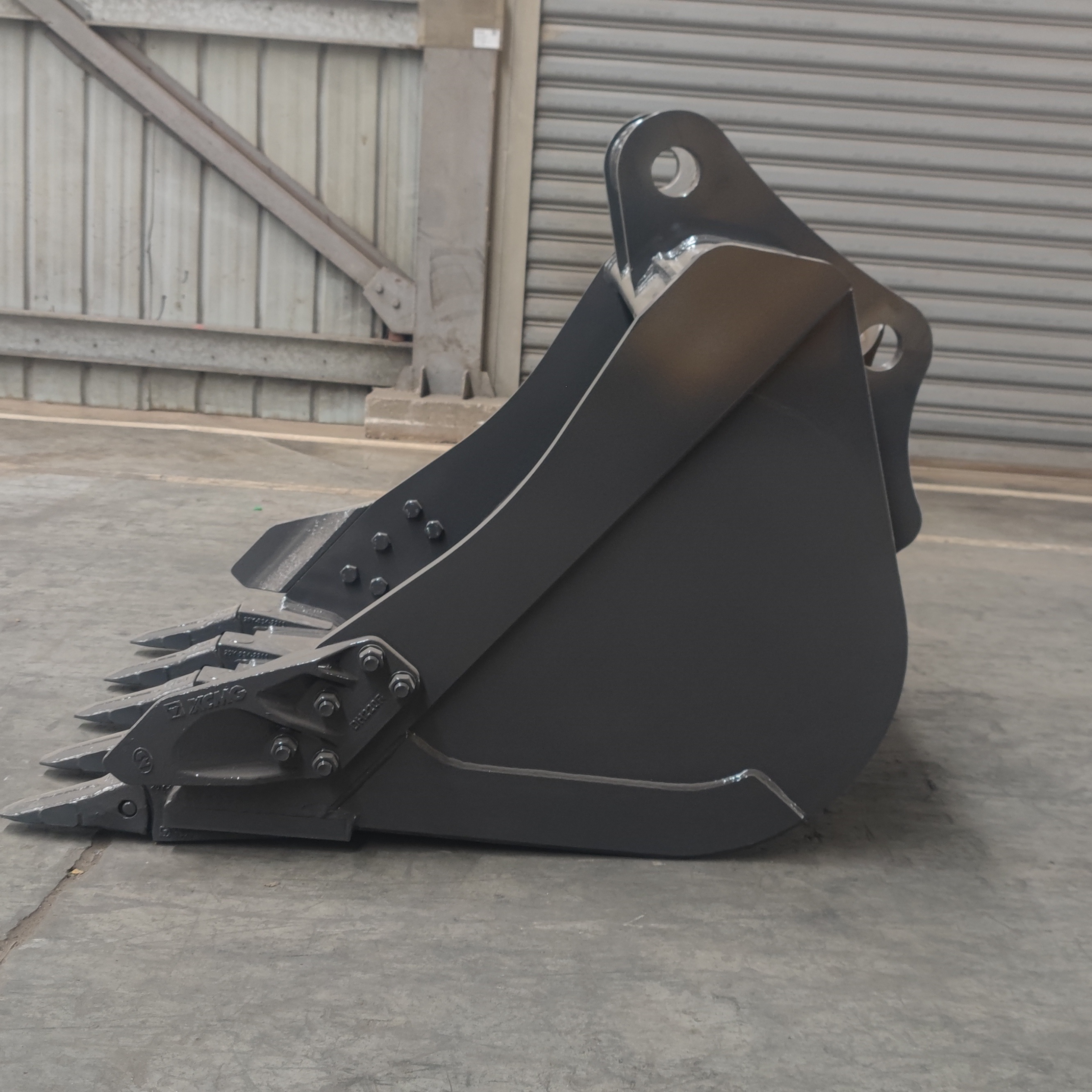

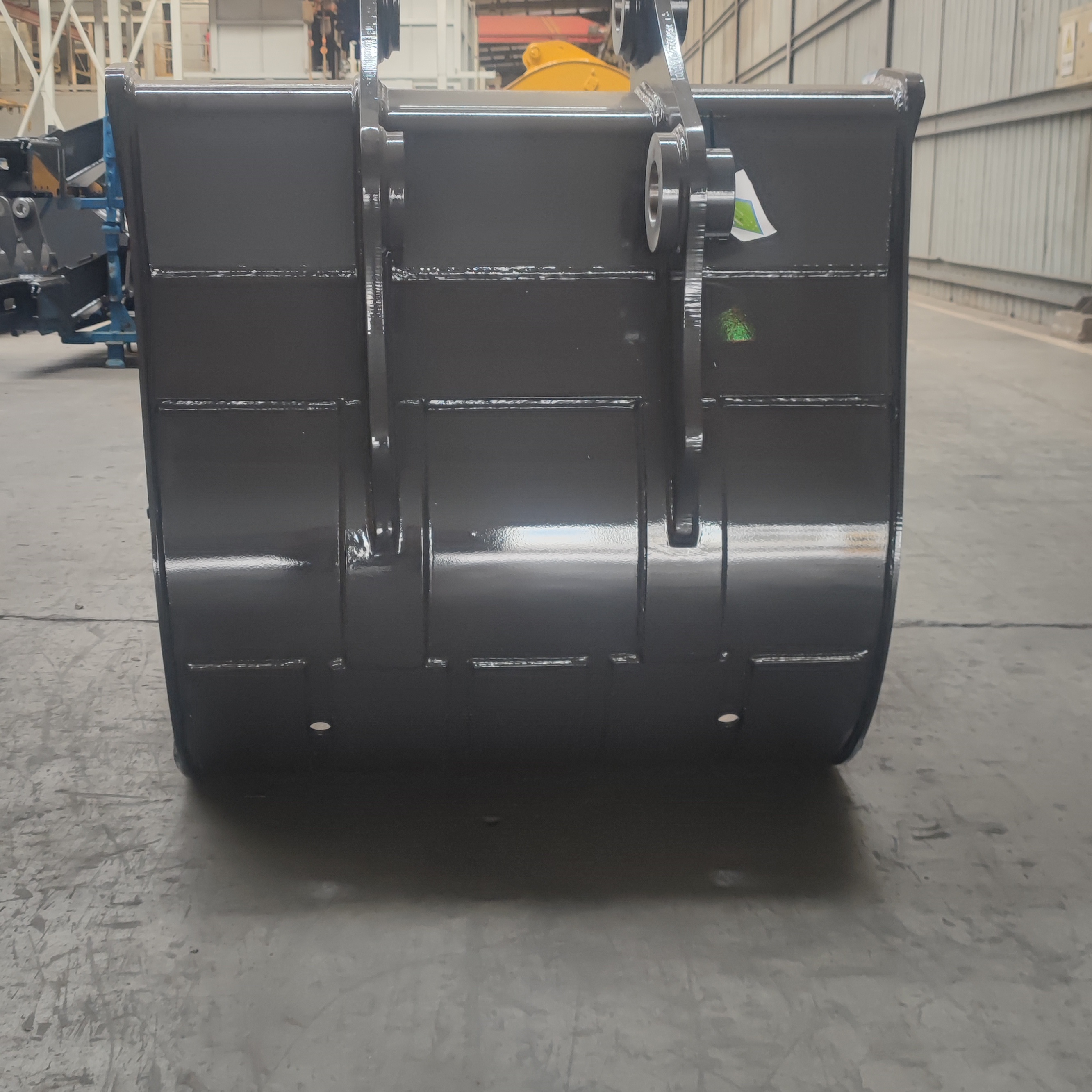

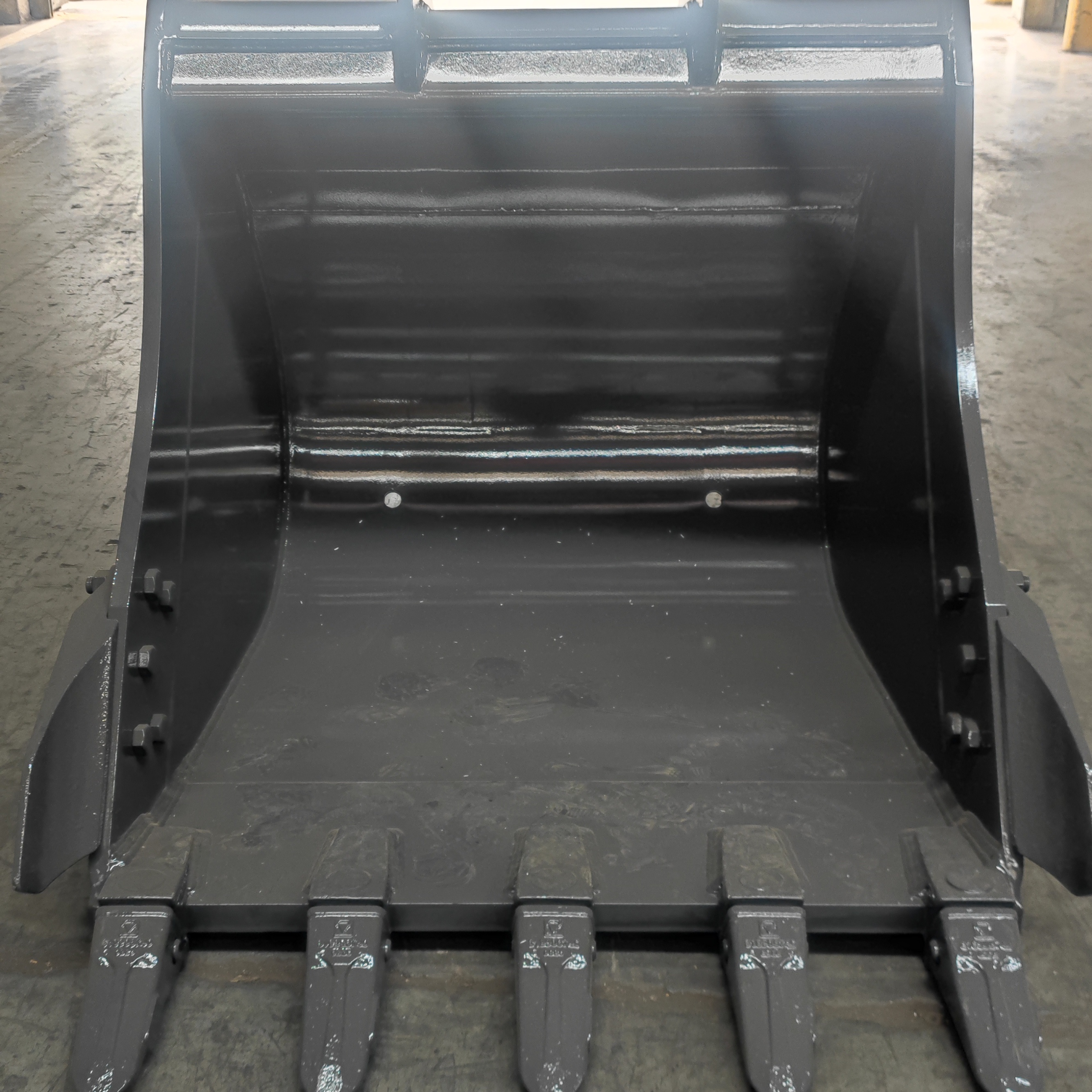

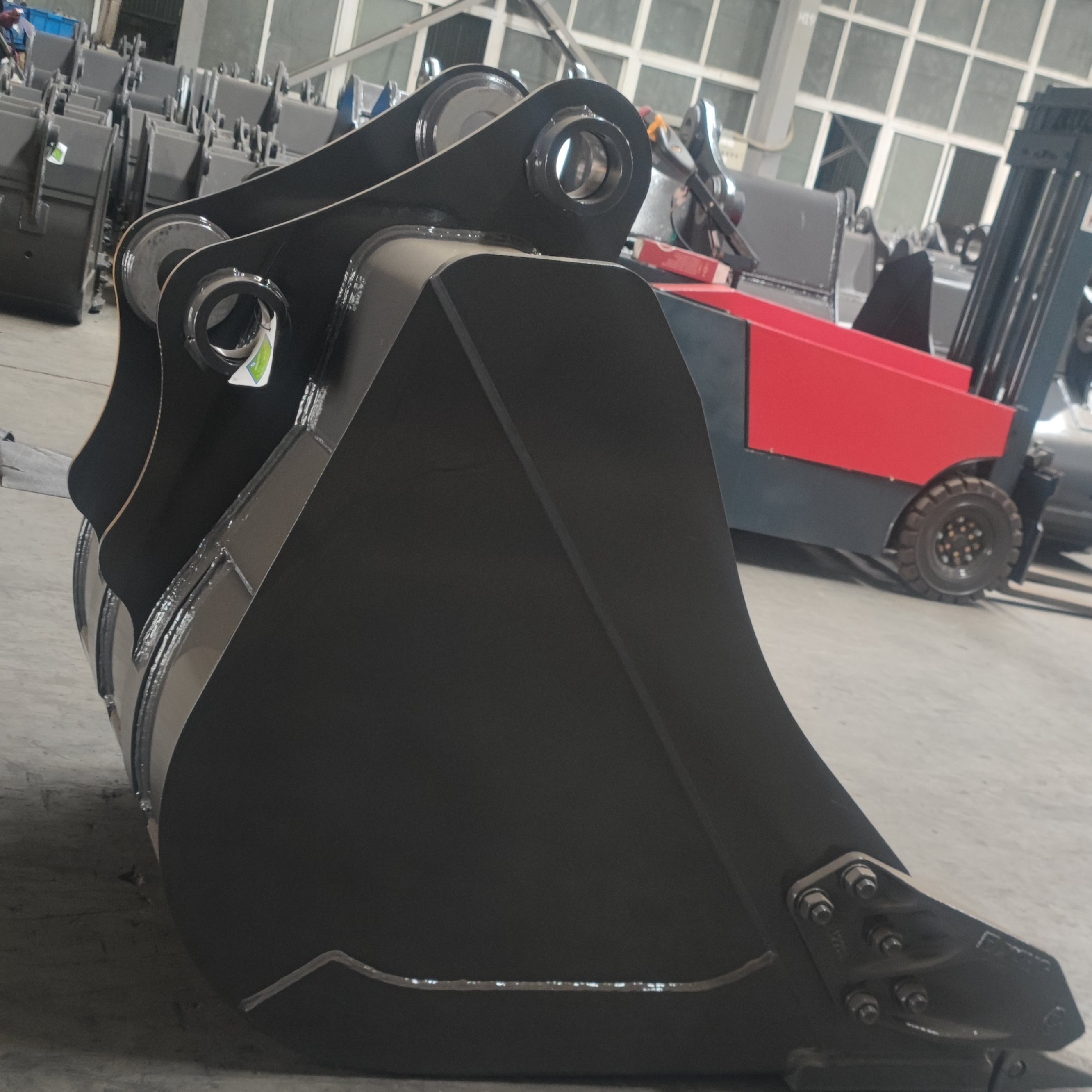

دلو مقوى خاص بالماكينة سعة 21 طنًا بسعة 0.9 متر مكعب وعرض 1235.3 ملم. يمكن استخدامه مع كوماتسو PC210، كاتربيلر 320، وساني SY215.
يضمن التصميم المعزز قدرتها على التعامل مع أعمال الحفر العامة والتربة متوسطة الصلابة والتربة المختلطة بكمية صغيرة من الحصى. فهو يوفر التوازن بين الكفاءة والمتانة، مما يجعله فعالاً من حيث التكلفة للاستخدام في الأعمال الأرضية ومشاريع البنية التحتية.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings  Applicable Working Conditions
21T-0.9m³ Reinforced bucket 21 0.9 1235.3
WH60C
Q355B
NM400
40
   Right-hand tooth DH220R
   Left-hand tooth DH220L
   Retaining ring PC200R
   Pin PC200 PIN
   Tooth point 19570RC-3
   Tooth adapter ZD-2211-AD
General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone.
default name

مزايا الأداء

الهيكل: تم تنفيذ التحسين الهندسي، وتم تحسين توزيع الضغط، وتم إضافة سماكة محلية إلى الأجزاء الرئيسية، وهو أكثر مقاومة للتشوه من دلو حفر الأرض القياسي.
المواد: تم دمج WH60C، Q355B، وNM400، مما يضمن القوة ومقاومة التآكل، مع عمر خدمة طويل.
لوحة القطع: بسمك 40 مم، مع قوة حفر كافية، مناسبة للتربة المتوسطة الصلابة والبيئات الصخرية، مع تآكل أقل لحافة القطع.
نظام التروس: أسنان القطع اليسرى واليمنى DH220، محول ZD-2211-AD، طرف الأسنان 19570RC-3، سهل التركيب والإزالة، وقوي ضد الصدمات.
default name

مزايا التصنيع

القطع: قطع بالليزر عالي الطاقة بأبعاد درزات دقيقة وملاءمة ممتازة.
اللحام: خط لحام خاص مدمج مع الروبوتات، طبقات لحام موحدة وكثيفة، جودة مستقرة.
مراقبة الجودة: التحكم الكامل في العملية بدءًا من القطع والمعالجة وحتى اللحام والطلاء، مما يضمن الاتساق لكل دلو.
التخصيص: اضبط سعة الجرافة وعرضها وسمك الشفرة وفقًا للنموذج وظروف العمل، وقم بالتخصيص حسب الحاجة.
default name
