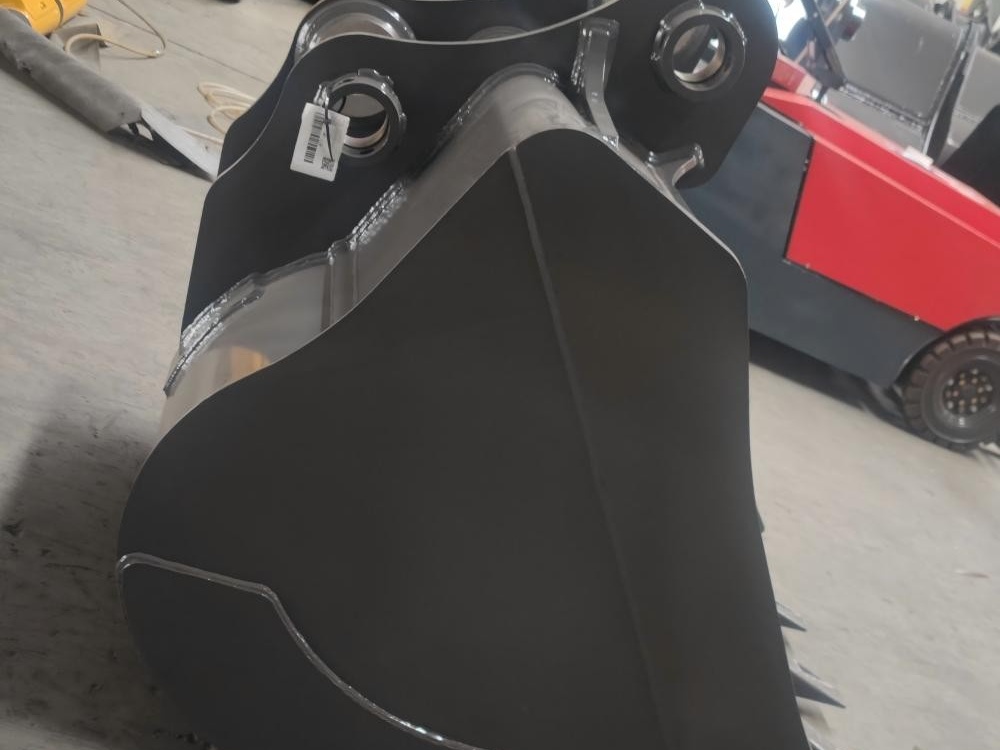

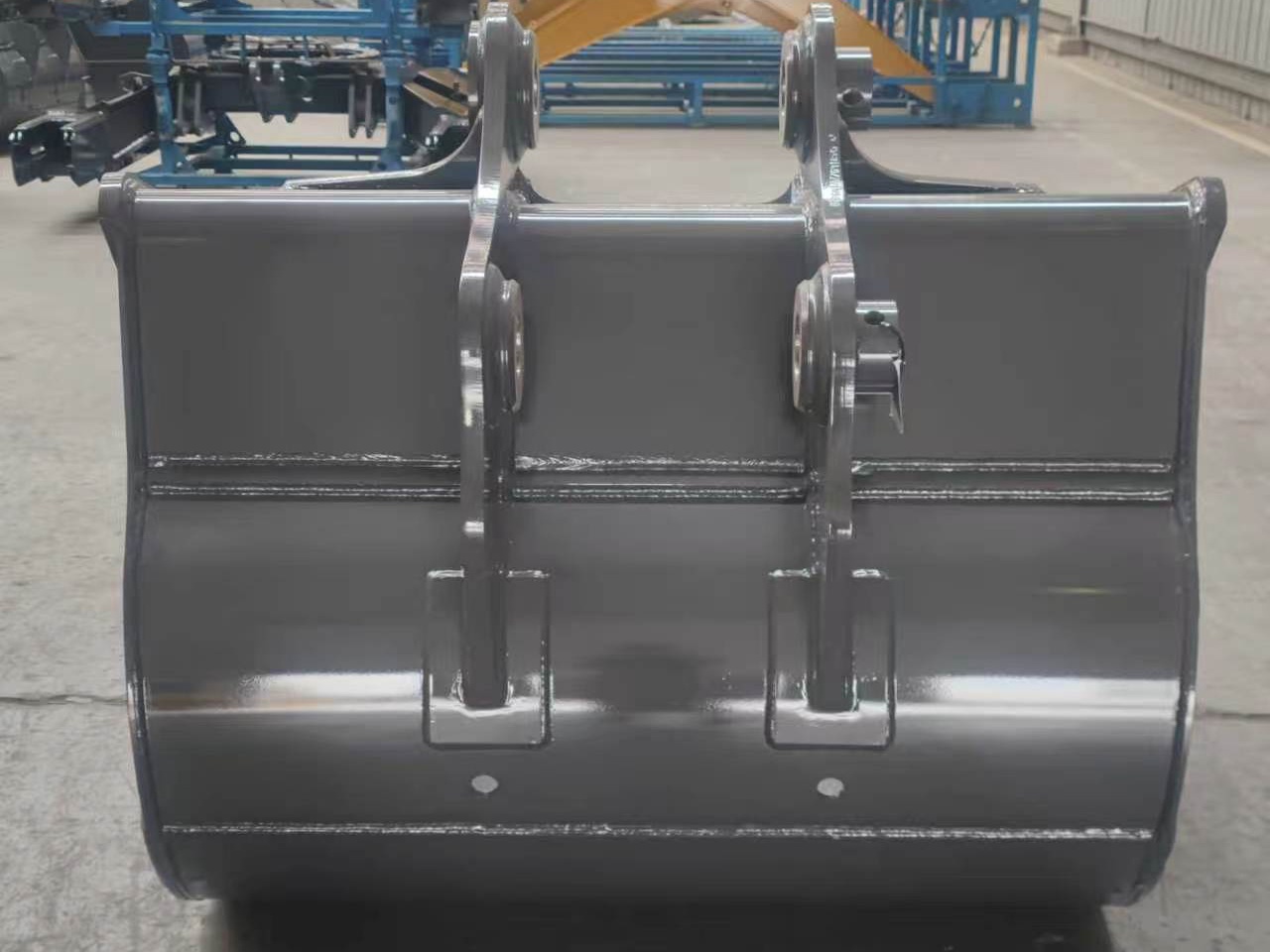

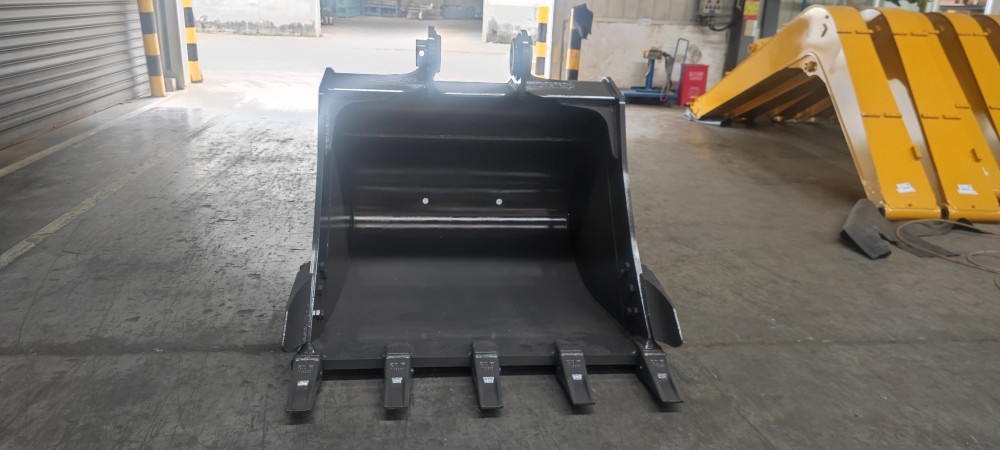

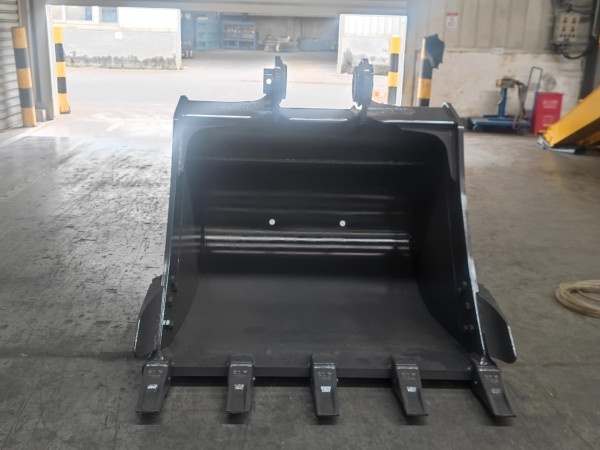

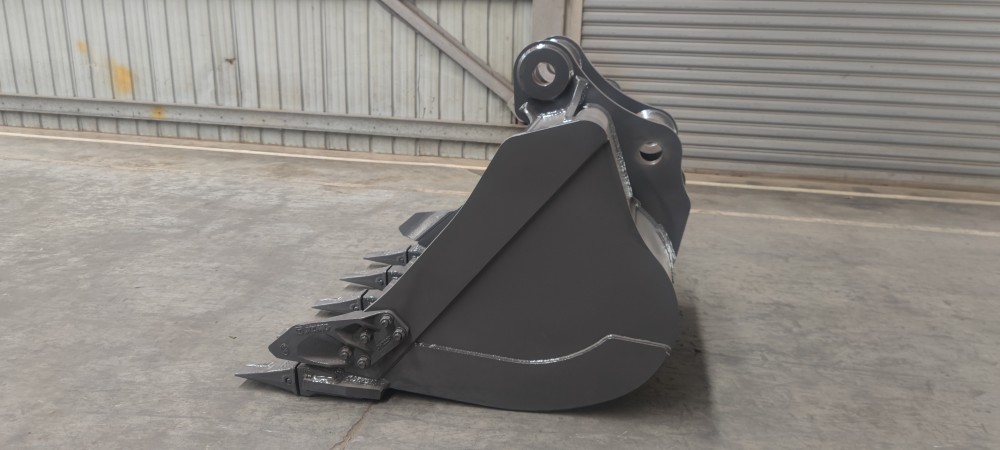

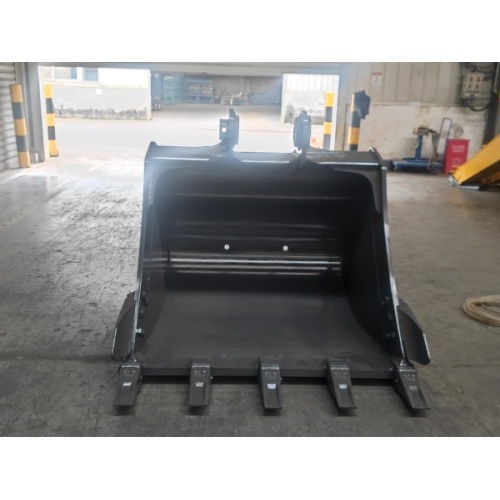

حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة
حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة
حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة
حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة
حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة
حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة

حفارة 20 طن 1.2 متر مكعب دلو لنقل التربة

أحصل على آخر سعر
أدني كمية الطلب:1
سمات المنتج

نموذج: 20T-1.2m³

التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

يبلغ حجم دلو تحريك التربة الذي يبلغ وزنه 20 طنًا والذي تنتجه شركة Guoren (GRMM) 1.2 متر مكعب. إنها مصنوعة من ثلاثة أنواع من الألواح الفولاذية: WH60C، Q355B، وNM400. تتميز هذه الألواح بمقاومة عالية للصدمات والتآكل، وهو ما يكفي لعمليات تحريك التربة اليومية.
تم فحص جميع الألواح الفولاذية قبل دخولها إلى المصنع، ويتم التحكم بدقة في المصدر. تم إجراء التعزيز الهيكلي على الأجزاء الحاملة، كما تم تعديل المحيط الداخلي للجرافة. عملية التحميل والتفريغ سلسة.
يتم توفير مجموعة كاملة من أجزاء GET المقاومة للتآكل (مثل أسنان الدلو). في حالة تلف أي أجزاء، يمكن استبدالها مباشرة، مما يؤدي إلى انخفاض تكاليف الصيانة ووقت التوقف القصير. إنها مناسبة لحفر التربة العادية والرمل والحصى، وهي مواد سائبة.
يمكن تخصيص الأحجام وأنواع الفولاذ وأشكال المحولات وأسنان الدلو والألوان وفقًا لعادات السوق المختلفة.
default name
تحديد
model Bucket Types ton-class Bucket capacity(m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions
20T-1.2m³ Earthmoving bucket 20 1.2 1441.2
WH60C
Q355B
NM400
40
Right-hand tooth: DH220R
Left-hand tooth:    DH220L
Retaining pin:J350-R
Pin:J350-P
Tooth sleeve: 1U3352
Tooth adapter:3G8354V
General earthwork and loose materials

مزايا عملية اللحام

  • يتم استخدام اللحام المحمي بغاز ثاني أكسيد الكربون (FCAW) في اللحام، ويمكن تنفيذه في جميع المواضع. بالنسبة للمفاصل ذات التحميل العالي، يتم اعتماد اللحام متعدد الطبقات والممرات المتعددة.
  • يتم تسخين المكونات مثل التركيبات على شكل أسنان وحواف القطع قبل اللحام. يتم التحكم في درجة الحرارة وفقًا للمعايير للتخلص من إجهاد اللحام ومنع التشقق.
  • المعلمات موحدة، واللحامون حاصلون على شهادات، وطبقات اللحام موحدة وبنمط مقياس السمك، والقوة مضمونة.
  • جميعها تتبع معايير المصنع. بعد اللحام، يتم إجراء الاختبار غير المدمر (NDT) والفحص البصري. فقط عندما يمر كل شيء، يمكن البدء في الرسم.
نماذج متوافقة
متوافق مع موديلات فئة 20 طن السائدة (على سبيل المثال، Komatsu PC200/220، Caterpillar 320/323، Sany SY205/215، XCMG XE200/215، Doosan DH220، Hitachi ZX200).
