الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو تحريك التربة> دلو نقل التربة Guo Run 13T 0.7m³

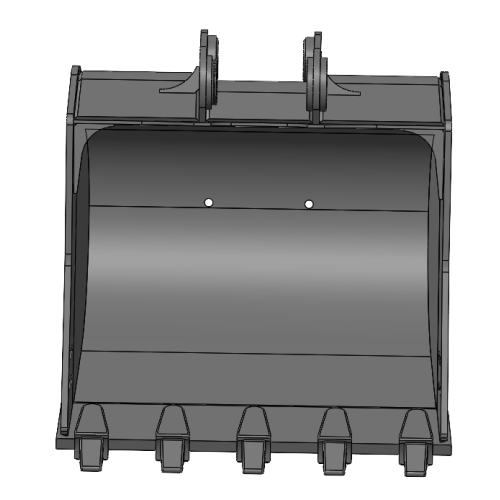

دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³
دلو نقل التربة Guo Run 13T 0.7m³

دلو نقل التربة Guo Run 13T 0.7m³

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

يبلغ حجم الدلو القياسي للآلة التي يبلغ وزنها 13 طنًا 0.7 متر مكعب. يمكن استخدامه لحفر التربة الجافة ونقل المواد السائبة. هذه مهام شائعة مثل حفر التربة ونقل المواد السائبة.
المواد هي: WH60C كطبقة أساسية، Q355B للحفاظ على القوة، NM400 لتحسين مقاومة التآكل. يتم أخذ القوة الهيكلية والمتانة في الاعتبار.
تتميز الملحقات القياسية للآلة ذات 13 طن بقدرة جيدة على التكيف وكفاءة عمل عالية.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings Applicable Working Conditions Compatible model
13T-0.7m³ Earthmoving bucket 13 0.7 1239
WH60C
Q355B
NM400
36
Right-hand tooth 2713-1228R
Left-hand tooth 2713-1228L
Retaining pin ZD300LK
Pin ZD300PN
Tooth sleeve ZD300T-220
Tooth adapter ZD300A
General earthwork and loose materials Compatible with mainstream 13-ton class models (Komatsu PC130, Caterpillar 313, Sany SY135, XCMG XE135, etc.)
الأداء الأساسي لدلو الأعمال الترابية Gu Run
الجسم الرئيسي:
تصميم مركب مقاوم للتآكل، هيكل أنبوب Q355B ذو صلابة ومتانة عالية.
شفرة:
36 مم NM400، مقاوم للصدمات ومقاوم للتآكل، قادر على تحمل العمليات الأرضية المتكررة.
مُكَمِّلات:
يتم توفير أسنان الدلو اليسرى واليمنى، ومحول الأسنان، والدبابيس، والأبازيم الحلقية، بدقة تنسيق عالية واستبدال مريح في الموقع.
شكل دلو:
0.7 م³، محيط قابل للتعديل، اختراق سلس، تفريغ نظيف، كفاءة تشغيل واحدة عالية، ومقاومة للتشوه.
default name
default name
default name
