الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو سوينغ> 21T 1.47m³ دلو متأرجح

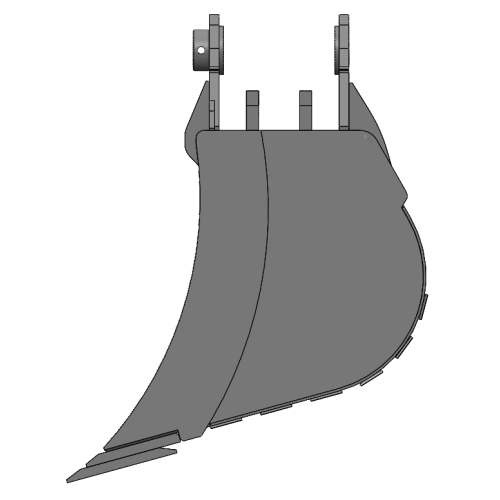

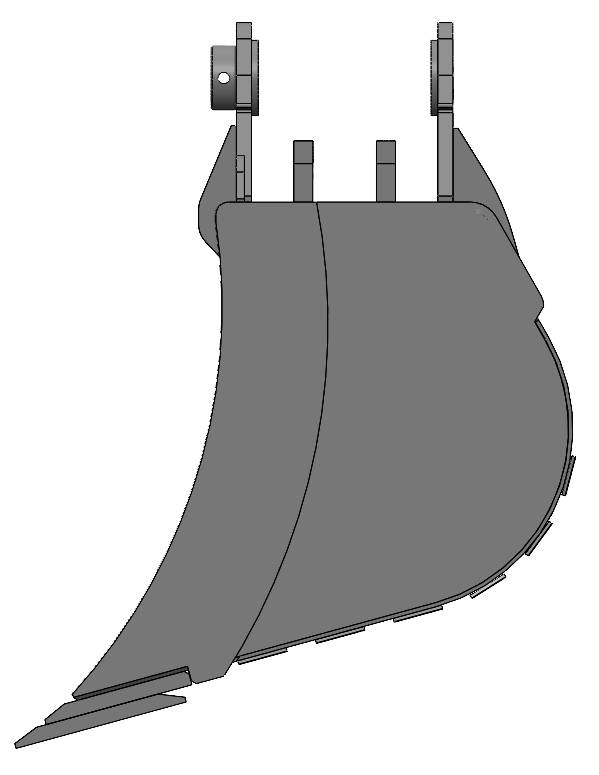

21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح
21T 1.47m³ دلو متأرجح

21T 1.47m³ دلو متأرجح

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

الجرافة المتأرجحة بسعة 21 طنًا ذات الحجم الكبير، مناسبة لثلاثة موديلات: Sany SY215، XCMG XE210، Komatsu PC210، وCaterpillar 320. مع حجم الجرافة 1.47 متر مكعب وعرض الجرافة 2050 مم، يمكنها حمل المزيد من المواد والكشط بشكل أوسع من الجرافات المتأرجحة العادية. لديها كفاءة أعلى بكثير للمنحدرات الكبيرة وتطهير التلال.
مادة مركبة من WH60C + Q355B + NM400، مع لوح تقطيع بسمك 30 مم وتصميم فم مسطح بدون أسنان دلو. متوافق مع الموديلات السائدة من فئة 21 طن (مثل Sany SY215، XCMG XE210، Komatsu PC210، Caterpillar 320، إلخ.)
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Applicable Working Conditions Compatible model
21T-1.47m³ Swing bucket 21 1.47 2050
WH60C
Q355B
NM400
30 Slope work, ditch repair and slope clearance Compatible with mainstream models of 21-ton class (such as Sany SY215, XCMG XE210, Komatsu PC210, Caterpillar 320, etc.)

أداء المنتج

1.47 متر مكعب سعة كبيرة، رحلات أقل
يبلغ حجم الدلو المتأرجح العادي حوالي 0.4 متر مكعب فقط. هذا هو 1.47 متر مكعب. عند القيام بقص المنحدر والتحميل في نفس الوقت، ليست هناك حاجة للاستمرار في الرجوع للخلف.
يمكن للجرافة التي يبلغ عرضها 2050 مم أن تقوم بكشط السطح بشكل متساوٍ دفعة واحدة.
بالنسبة للمنحدرات الكبيرة، يوفر الدلو العريض الوقت. إنها تتوافق مع نطاق التأرجح للآلة التي يبلغ وزنها 21 طنًا وهي واسعة دون اهتزاز.
يمكن للوحة الشفرة السميكة 30 مم أن تتحمل المنحدرات الصلبة
إنه أكثر سمكًا بـ 10 ملم من النموذج القياسي. عند مواجهة المنحدرات التي تحتوي على المزيد من الصخور والتربة الصلبة، تكون لوحة الشفرة أقل عرضة للتشقق.
حافة مسطحة بلا أسنان، سطح منحدر نظيف
مفتاح تقليم المنحدر هو أن تكون مسطحًا. تترك أسنان الدلو علامات يجب ملؤها. يتم كشط الحافة المسطحة مباشرة وتشكيلها دفعة واحدة.
يتم ربط NM400 بالمنطقة البالية
لوحة الشفرة، وقاع الجرافة، والجدران الجانبية مرفقة بألواح مقاومة للتآكل NM400. من الأرخص عدم تكديس المواد باهظة الثمن في الدلو التالف. يتم إنفاق الأموال على الحافة .

تخصيص OEM / ODM

  • حجم وعرض الجرافة: قابلان للتعديل وفقًا لظروف العمل. يمكن جعلها أكبر أو أضيق.
  • سمك الشفرة: قياسي 30 ملم. يمكن زيادة سماكتها في ظروف الصخور الصلبة.
  • نطاق اللوحة المقاومة للتآكل: NM400. يتم تخصيص منطقة التغطية بناءً على موقع التآكل الفعلي.
  • دبوس العمود وقضيب التوصيل: متطابقان بدقة وفقًا لمعلمات الطراز المحددة.
  • اختيار أسنان الجرافة: قياسي بدون أسنان. يمكن إضافة مقاعد أسنان ملحومة إضافية إذا لزم الأمر.
  • لوحة العلامة التجارية: يتم تخصيص الشعار ورقم الجزء واللون حسب المتطلبات.
