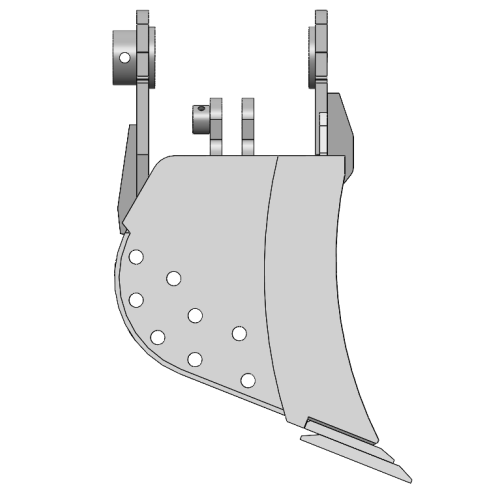

21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح
21T 0.41m³ دلو متأرجح

21T 0.41m³ دلو متأرجح

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

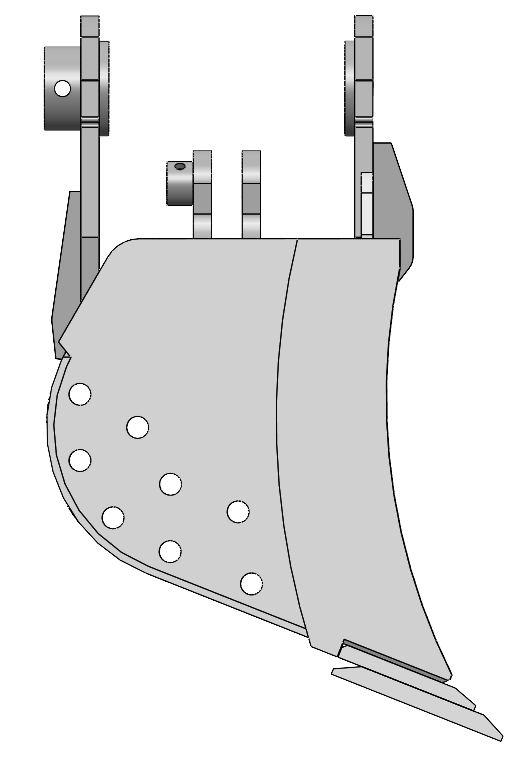

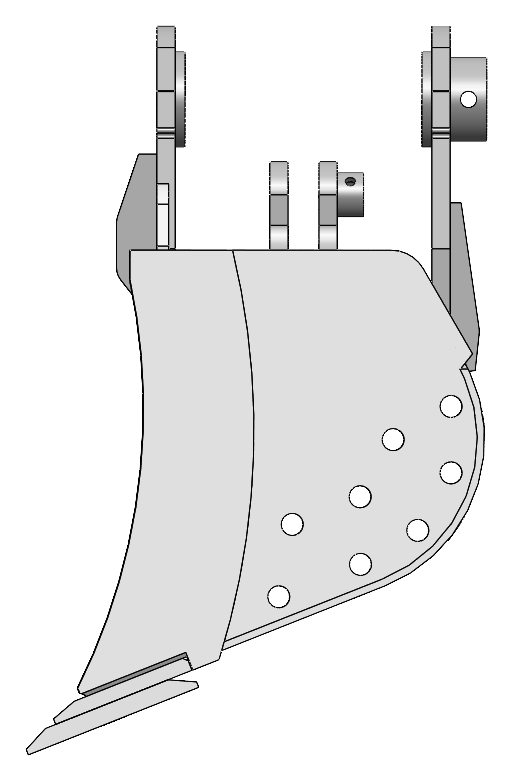

تم تصميم هذه الجرافة المتأرجحة سعة 21T-0.41m³ خصيصًا للحفارات سعة 21 طنًا للقيام بمهام مثل حفر المنحدرات والمنحدرات. وهي متوافقة مع الموديلات الشائعة مثل Sany SY215، وXCMG XE210، وKomatsu PC210، وCaterpillar 320. وبمجرد تركيبها، يمكنها الإمالة والتأرجح، وتكون قادرة على أداء إصلاح المنحدرات، وإزالة الخنادق، وتسوية حافة المنحدر.

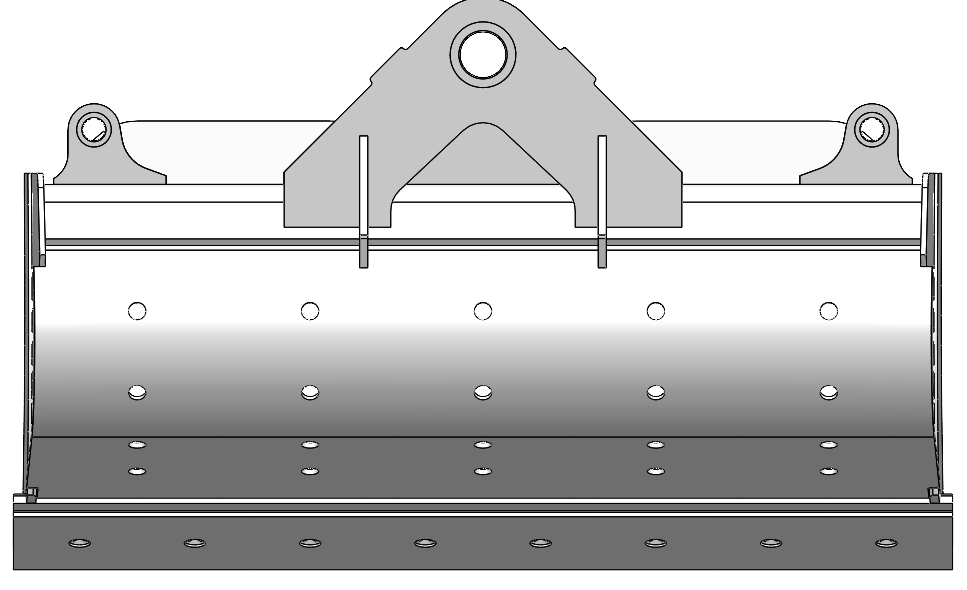

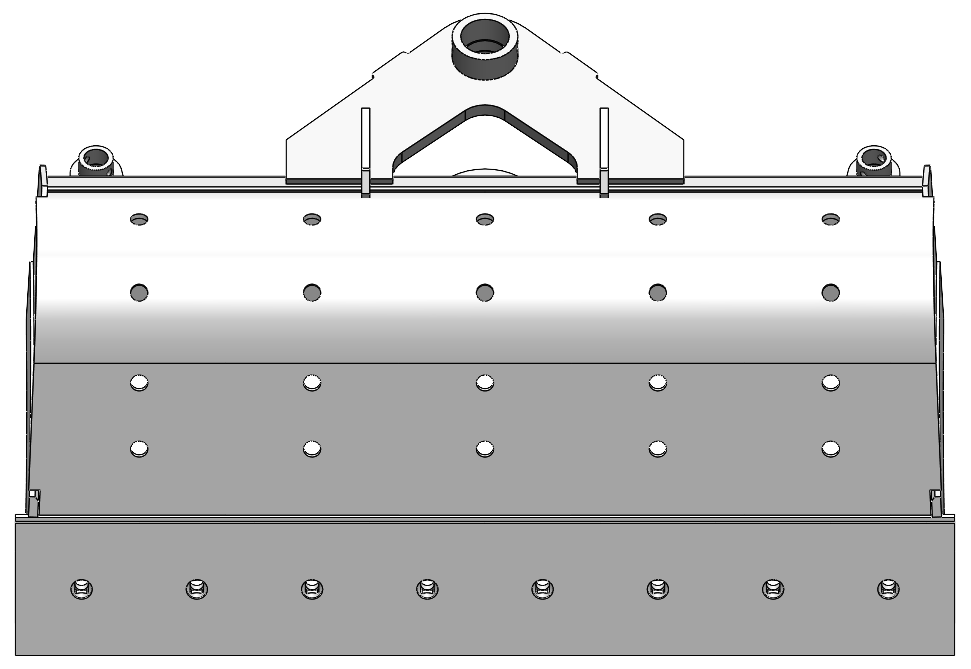

مع حجم دلو يبلغ 0.41 مترًا مكعبًا وعرض دلو يبلغ 1630 مم، فإن هذا الحجم ليس كبيرًا جدًا ولا صغيرًا جدًا بالنسبة لآلة سعة 21 طنًا - إنه مجرد العرض المناسب - مما يسمح لكشط مساحة كبيرة دفعة واحدة أثناء إصلاح المنحدرات؛ ومع ذلك، لن يكون واسعًا جدًا بحيث لا يسبب اهتزازًا شديدًا أثناء التأرجح.
المواد المستخدمة عبارة عن مركب من ثلاث طبقات: الجسم الرئيسي مصنوع من الفولاذ عالي القوة WH60C، ويضمن Q355B هيكل اللحام، ويتم توصيل اللوحة المقاومة للتآكل NM400 بالمنطقة الأكثر تآكلًا. لا تحتوي لوحة الشفرة مقاس 20 مم على تصميم مسنن - مفتاح إصلاح المنحدر هو تحقيق سطح مستوٍ، وليس الكشط.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Applicable Working Conditions Compatible model
21T-0.41m³ Swing bucket 21 0.41 1630
WH60C
Q355B
NM400
20 Slope work, ditch repair and slope clearance Compatible with mainstream models of 21-ton class (such as Sany SY215, XCMG XE210, Komatsu PC210, Caterpillar 320, etc.)

أداء المنتج

الميل الأيسر والأيمن، تمريرة واحدة لإصلاح المنحدر
بالنسبة للجرافات العادية، يتطلب إصلاح المنحدر تحريك جسم الماكينة بشكل متكرر وأرجحة وجه الجرافة لتتبع المنحدر، وتحقيق الشكل الكامل دفعة واحدة.
لا توجد أسنان على الفم المسطح، سطح نظيف
لا توجد علامات أسنان متبقية، سطح المنحدر أملس، لا حاجة للإصلاح اليدوي.
يتم تطبيق NM400 على المناطق البالية
لا يُسمح بالتكديس غير المتساوي للمواد باهظة الثمن. لوحة السكين، وقاع الدلو، والجدران الجانبية مطلية بـ NM400، مما يوفر مقاومة التآكل في المناطق التي تتطلب ذلك.
يمكن تثبيت عرض 1630 مم بثبات
إنها تتوافق مع نطاق التأرجح لآلة بوزن 21 طنًا، وتكشط بشكل واسع دون أن تهتز.
default name

مزايا الإنتاج

مصنوعة وفقا لمعلمات النموذج
إن حجم عمود الدبوس وهندسة قضيب التوصيل متطابقان بدقة، ويتناسبان بإحكام دون أي ارتخاء عند التثبيت.
اللحام الكامل لخط اللحام الرئيسي
يتم إجراء اللحام الإضافي في المناطق المجهدة الرئيسية لمنع التشقق في ظل ظروف الاهتزاز.
لحام كامل والتصاق مثالي للوحة المقاومة للتآكل
الحواف مشطوفة، مما يمنع الاعوجاج وانفصال اللوحة.
التأرجح الفعلي المُقاس في المصنع
يتم اختبار الاتصال للزاوية الهيدروليكية والنعومة. سيتم شحن المنتج فقط في حالة عدم وجود التصاق.
دعم التخصيص
يمكن تعديل عرض الشفرة، وسمك لوحة الشفرة، ومنطقة تغطية اللوحة المقاومة للتآكل وفقًا لظروف العمل.
