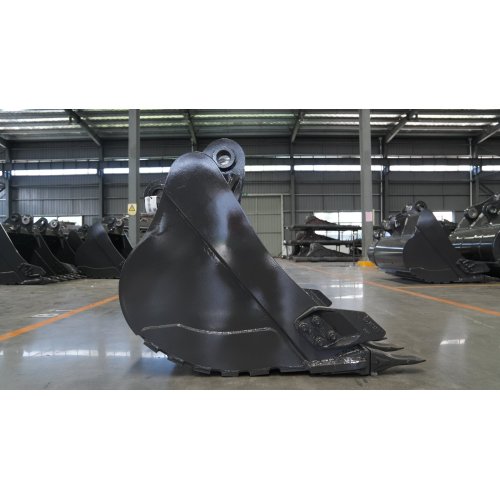

18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى
18T-0.91m³ دلو مقوى

18T-0.91m³ دلو مقوى

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص


يبلغ حجم الدلو الثقيل للحفارة 18 طنًا 0.91 مترًا مكعبًا. وهو متوافق مع كوماتسو PC180، كاتربيلر 318، وساني SY195.
المادة عبارة عن مركب من الفولاذ عالي القوة WH60C وQ355B والفولاذ المقاوم للتآكل NM400، مع هيكل رئيسي محسّن. يتم استخدامه بشكل أساسي للتربة متوسطة الصلابة والتربة المختلطة التي تحتوي على كمية صغيرة من الحصى. إنها مناسبة للعمليات الترابية والصخور الخفيفة، وتجمع بين مقاومة الصدمات ومقاومة التآكل.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings Applicable Working Conditions Compatible model
18T-0.91m³ Reinforced bucket 18 0.91 1396.1
WH60C
Q355B
NM400
40
Right-hand tooth DH220R
Left-hand tooth DH220L
Retaining ring PC200R
Pin PC200PIN
Tooth point 19570RC-3
Tooth adapter ZD-2211AD
General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone. Compatible with mainstream 18-ton class models (Komatsu PC180, Caterpillar 318, Sany SY195, etc.)

خصائص الأداء الأساسية لـ Guorun

  • شفرة NM400 مقاس 40 مم، قادرة على سحق الحجارة بالصدمة.
  • تم تعزيز جسم الدلو بالكامل، مما يؤدي إلى تقليل التشقق والتشوه تحت عمليات الحفر ذات الأحمال الثقيلة.
  • المسبوكات كاملة: أسنان DH220، ومحول، وجلبة، ودبوس، ومشبك. من السهل الاستبدال في الموقع وبتحمل شديد.
  • تم تحسين نوع الجرافة إلى 0.91 متر مكعب، مما يضمن اختراقًا سلسًا وتفريغًا نظيفًا.
الإنتاجية وقوة التصنيع GRMM
يتم تنفيذ جميع العمليات الرئيسية في مصنعنا الخاص: القطع، والثني، واللحام الآلي، والمعالجة الحرارية لتخفيف الضغط، والتصنيع الدقيق. لا يتم الاستعانة بمصادر خارجية لأي منهم.
يتم فحص الفولاذ والمسبوكات عالية القوة قبل دخول المصنع، مما يضمن جودة المواد الخام. قبل أن تغادر المنتجات المصنع، يتم إجراء اختبارات اللحام غير المدمرة والتحقق من الحجم والتحقق من التجميع قبل إطلاقها.
القدرة الإنتاجية كافية. يمكن قبول الطلبات القياسية واسعة النطاق والتعديلات المخصصة بناءً على التطبيقات. تعبئة النقل البحري + مستندات التصدير الكاملة تضمن التسليم المستقر إلى الخارج.
