الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو مقوى> دلو مقوى للحفارة 15T 0.6m³

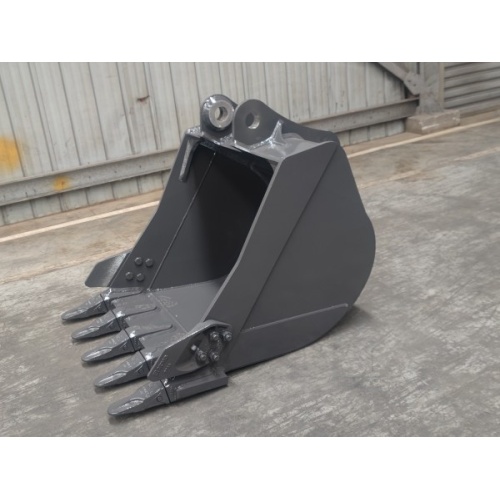

دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³
دلو مقوى للحفارة 15T 0.6m³

دلو مقوى للحفارة 15T 0.6m³

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

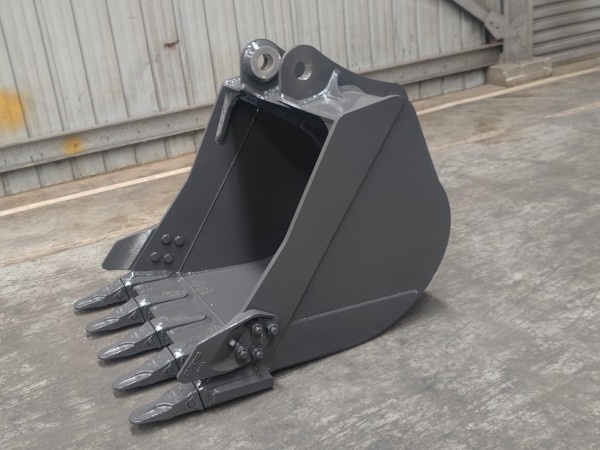

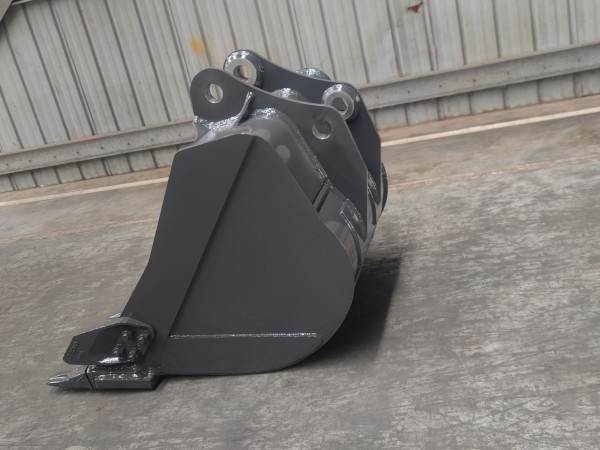

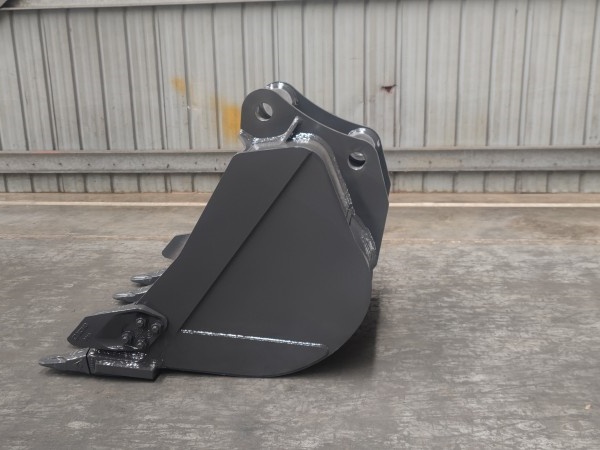

15T - 0.6m³ جرافة معززة
يتمتع هذا اللودر المقوى الذي يتم إنتاجه ذاتيًا بقدرة 15 طنًا بسعة 0.6 متر مكعب. وهي مصنوعة من الفولاذ عالي القوة Q355B. يبلغ سمك الشفرة 36 ​​مم، ويتم إضافة ألواح تقوية إضافية إلى المناطق المجهدة، مما يجعلها أكثر مقاومة للصدمات والتشوه مقارنة بجرافات تحريك التربة العادية.
إنها مناسبة للأعمال الترابية العامة، والتربة متوسطة الصلابة، والتربة المختلطة مع بعض الحصى. إنها مناسبة للأعمال الأرضية، والحفريات البلدية، وتسوية الموقع.
يأتي مزودًا بمجموعة كاملة من أجزاء GET المقاومة للتآكل، والتي يسهل فكها وتجميعها، وتتطلب وقتًا أقل للتوقف عن العمل. يمكن تخصيص العرض والسعة والمواد الفولاذية واللون وفقًا لتفضيلات السوق المحلية.
default name

تحديد

Product Name model Bucket Types ton-class Bucket capacity (m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions
Bucket 15T-0.6m³ Reinforced bucket 15 0.6 1073.7 Q355B 36
Right-hand tooth: 2713-1228R
Left-hand tooth :2713-1228L
Retaining pin: ZD300LK
Pin: ZD300PN
Tooth sleeve: ZD300T-220
Tooth adapter: ZD300A
General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone.
ميزات المنتج الرئيسية

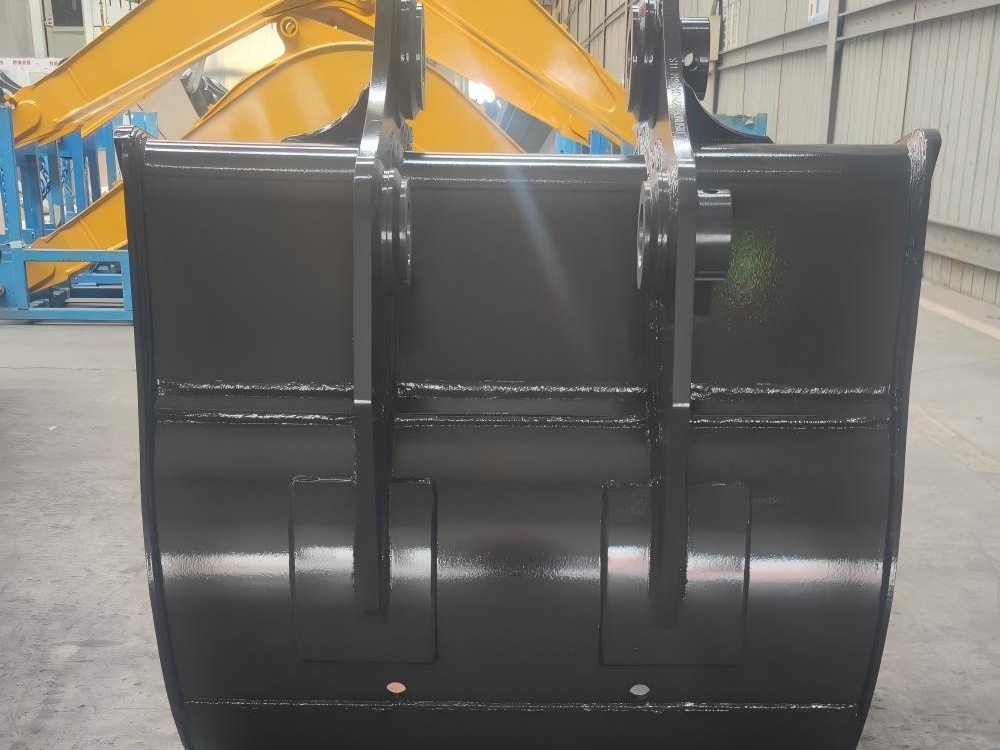

تعزيز الهيكل
يتم تعزيز الألواح السفلية والجانبية بأضلاع تقوية. يتم تعزيز نقاط التوتر بشكل أكبر. في ظل التربة الصلبة وظروف الحصى، يكون أقل عرضة للتشوه أو التشقق، وله عمر خدمة أطول.

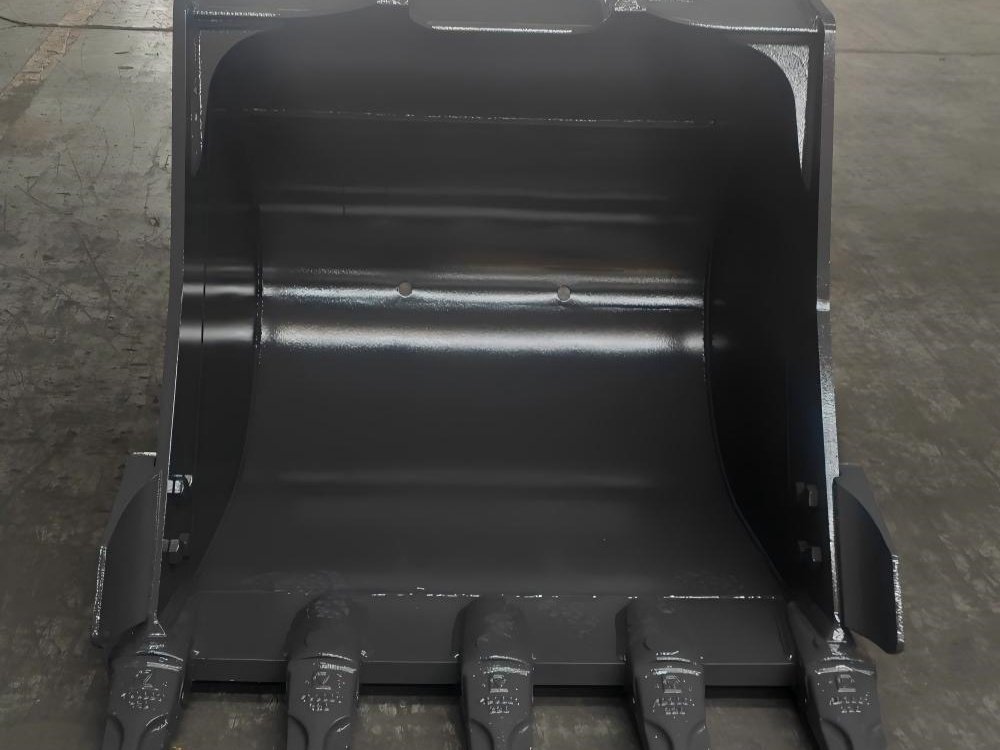

حافة قطع مقاومة للاهتراء مقاس 36 مم
يتحمل بشكل مباشر تأثير الحفر، ومقاوم للتآكل، ولا حاجة إلى استبدال لوحة الشفرة بشكل متكرر.
الحصول على المكونات
يتم تضمين المجموعة الكاملة من أسنان الدلو والمحول والدبابيس والمثبتات. التثبيت والتفكيك والاستبدال كلها مريحة.
إنتاج المصنع
يتم تنفيذ عمليات القطع والمعالجة واللحام والسفع بالخردق والطلاء في المصنع نفسه. يمكن إجراء التخصيص وفقًا لرسومات العملاء.
التوافق مع الأجهزة المتعددة
هيكل توصيل الأذن قابل للتعديل، ويمكن تجهيز جميع الحفارات الرئيسية بوزن 15 طن.
