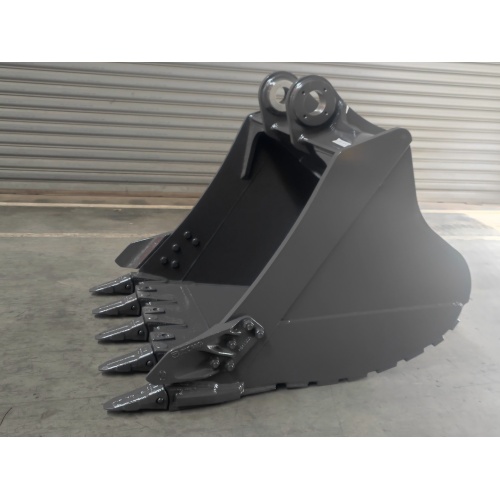

دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³
دلو مقوى للحفارة 20T 1.2m³

دلو مقوى للحفارة 20T 1.2m³

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج
ملخص

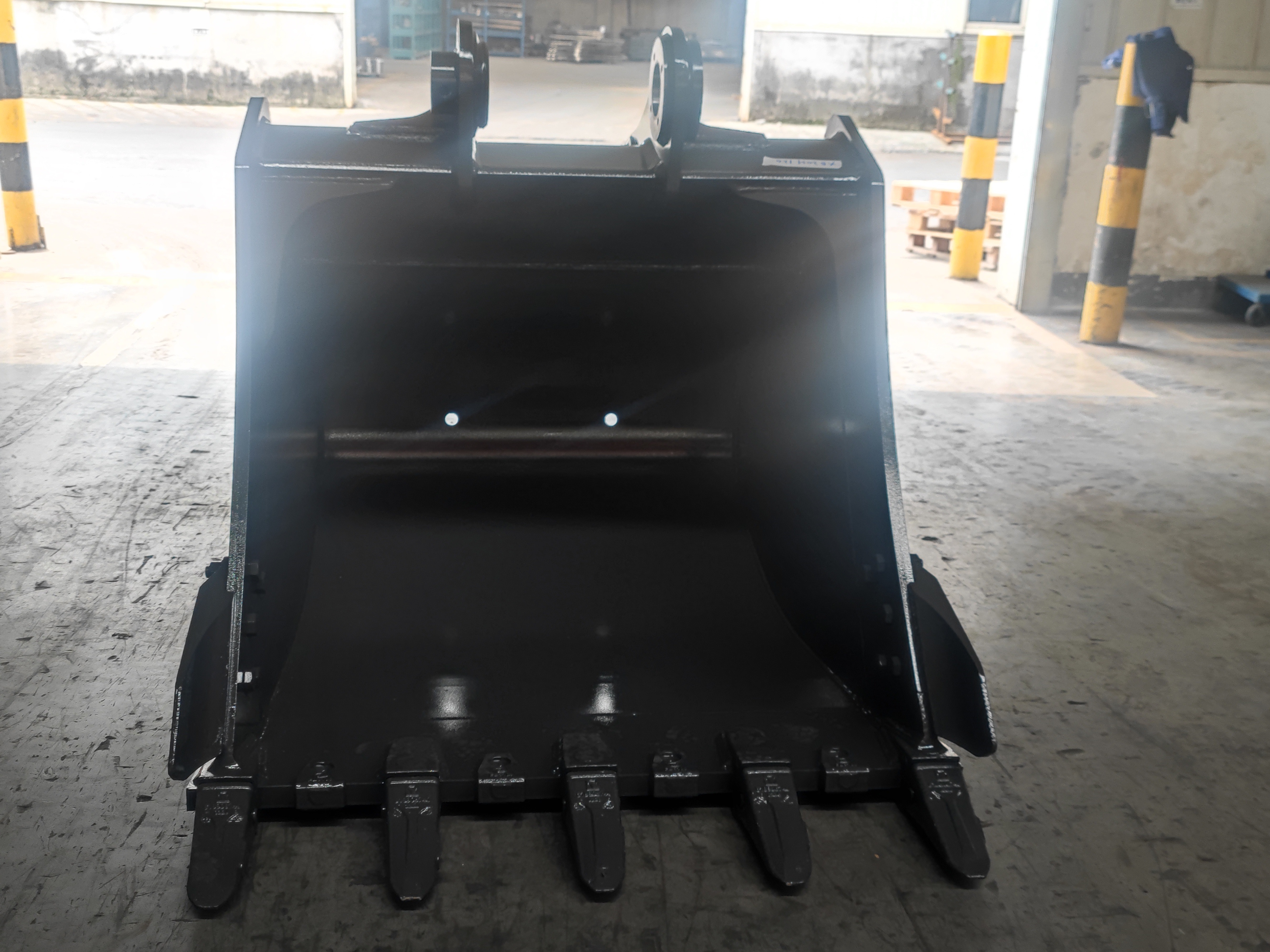

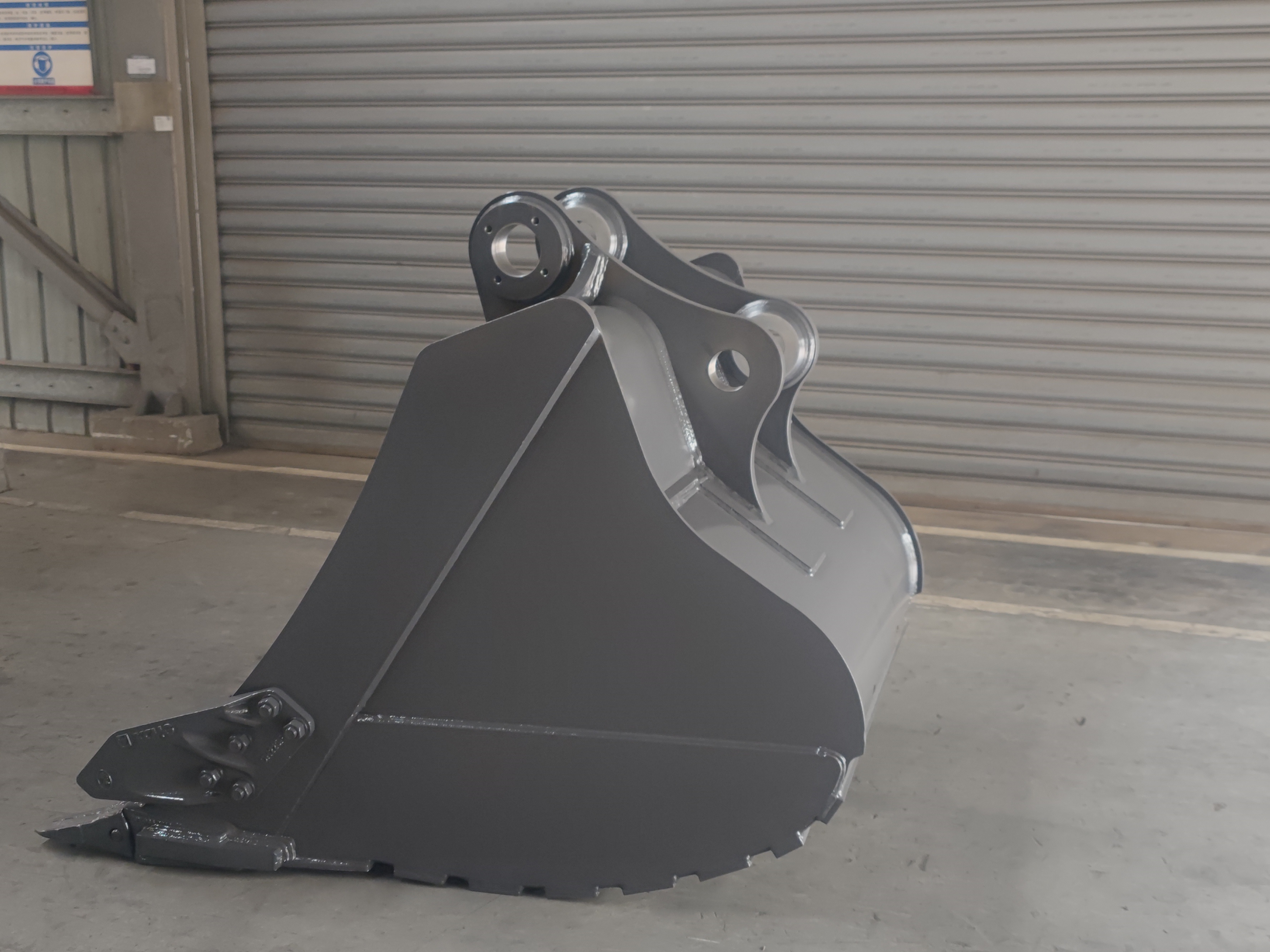

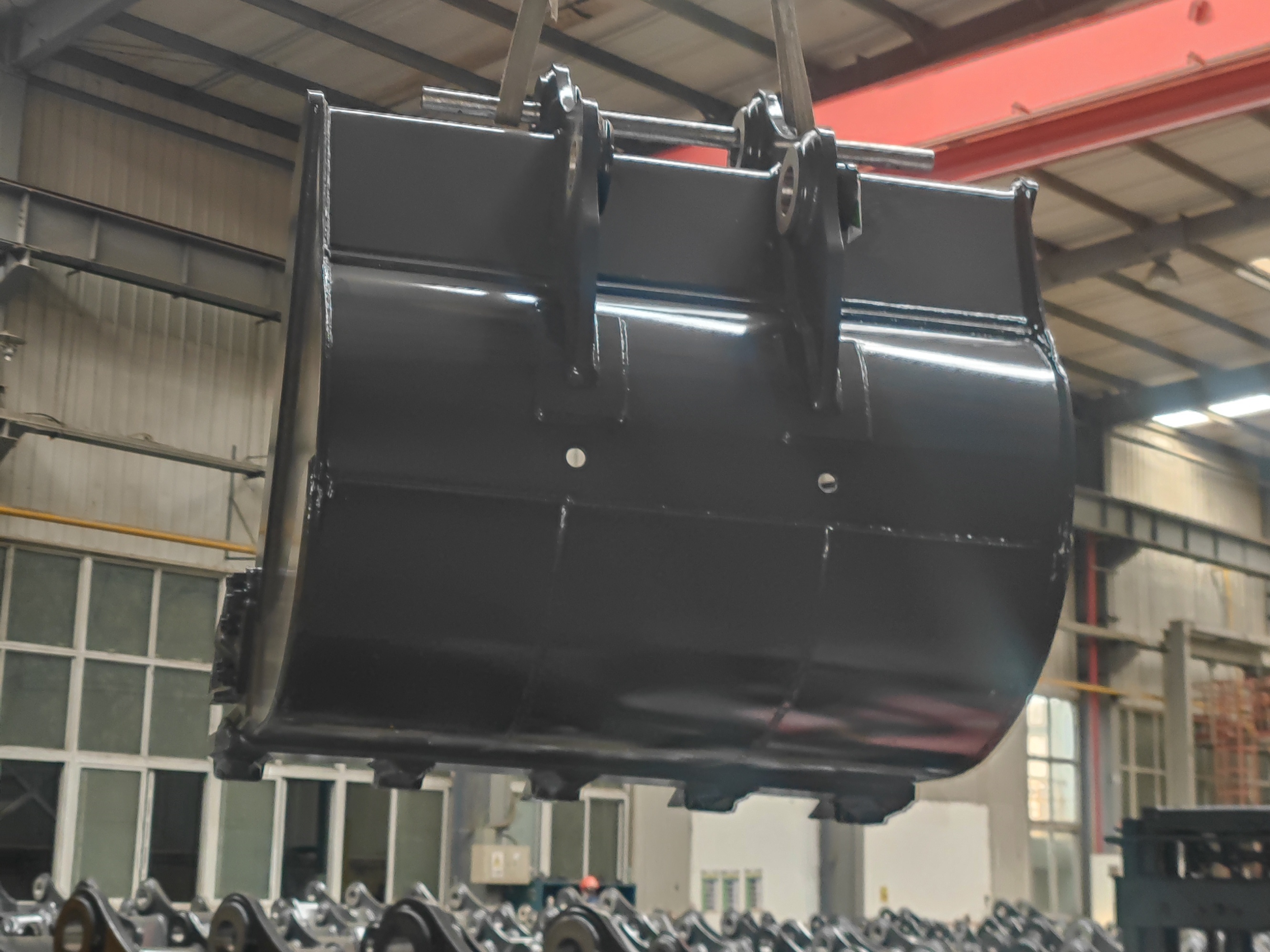

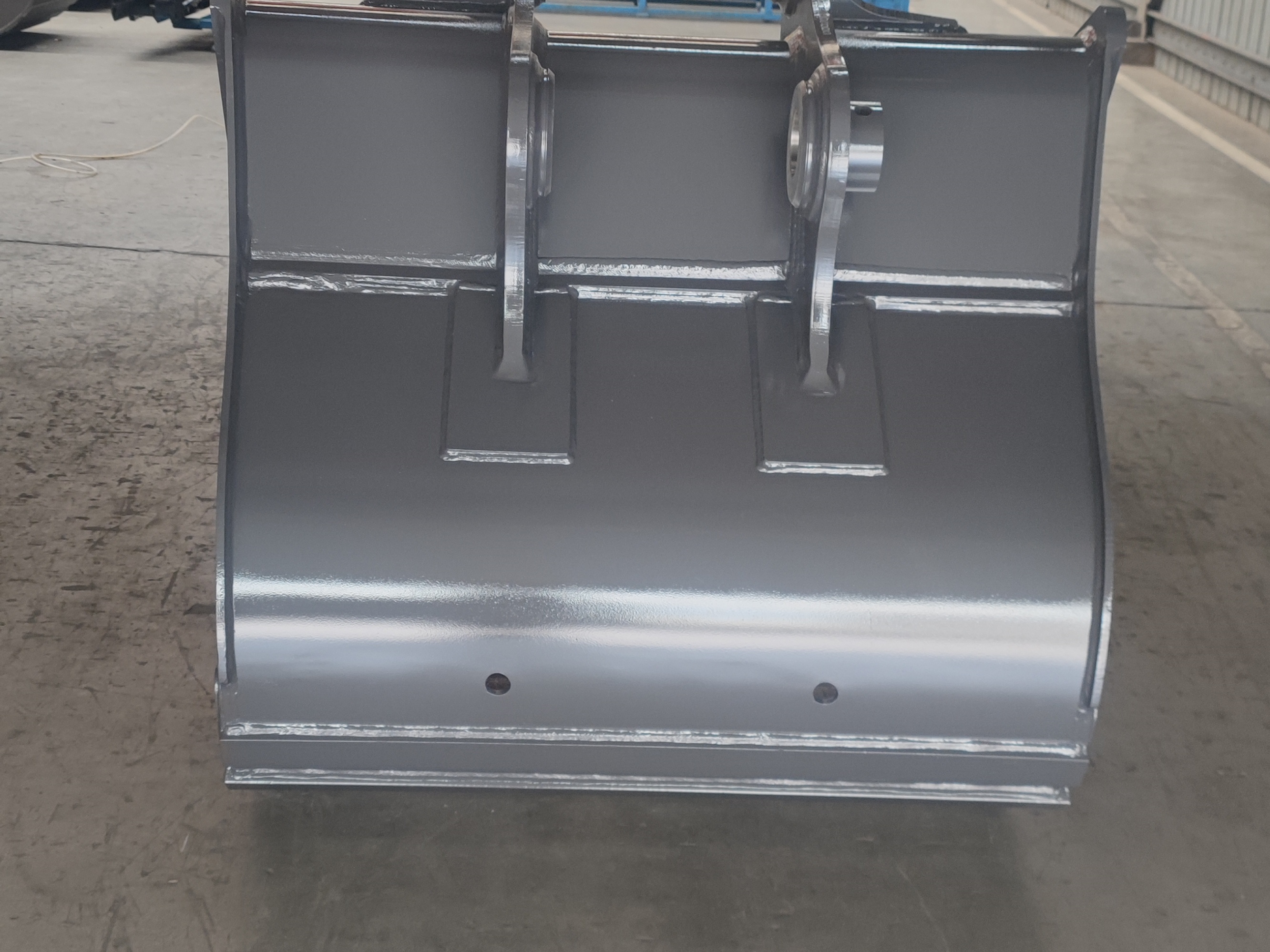

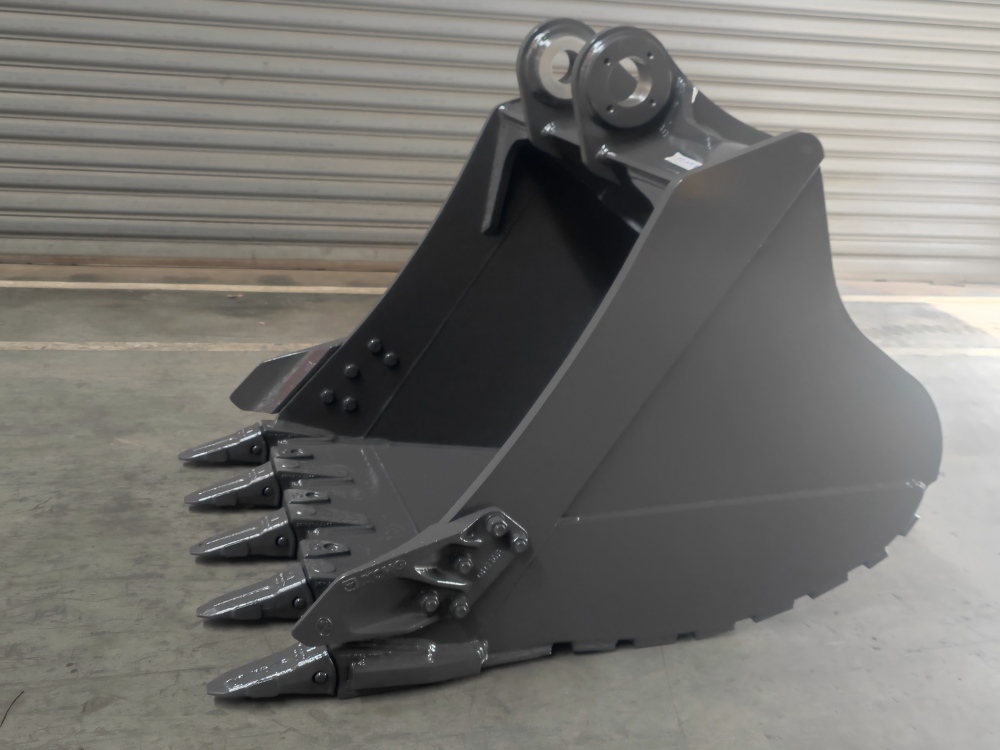

الدلو المقوى للخدمة الشاقة الذي تم تصنيعه بواسطة Guoren Western Factory لديه حجم دلو يبلغ 1.2 متر مكعب.
المواد المستخدمة هي: الفولاذ عالي القوة WH60C، الفولاذ الهيكلي Q355B، ومركب الفولاذ المقاوم للتآكل NM400. يبلغ سمك لوحة الشفرة 40 مم، ويتم إضافة أضلاع تقوية إضافية في مواضع حمل الأحمال مثل الألواح السفلية والجانبية، مما يجعلها أكثر مقاومة للصدمات والتشوه مقارنة بجرافات تحريك التربة العادية.
إنها مناسبة للأعمال الترابية العامة، والتربة متوسطة الصلابة، والتربة المختلطة مع كمية صغيرة من الحصى. كما أنها مناسبة للحفريات الهندسية المدنية، والمشاريع البلدية، ونقل الصخور الأرضية.
إنه يأتي مع مجموعة كاملة من أجزاء GET المقاومة للتآكل، والتي يسهل صيانتها واستبدالها، كما أن وقت التوقف عن العمل أقل في الموقع. يمكن تخصيص العرض والسعة ونوع الفولاذ ولون الطلاء وفقًا لتفضيلات السوق المحلية.
default name

تحديد


model Bucket Types ton-class Bucket capacity (m³) Bucket width (mm) Main material Blade thickness (mm) Casting Selection and Matching Applicable Operating Conditions
20T-1.2m³ Reinforced bucket 20 1.2 1356.2
WH60C
Q355B
NM400
40

Left-side tooth:DH220L
Right-side tooth:DH220R
Retaining clip:PC200R
Pin:PC200PIN
Tooth point:19570RC-3
Tooth adapter:ZD-2211AD
General earthwork, medium-hard soil, and mixed soil containing small amounts of crushed stone.

المزايا

1. تقوية الهيكل
يتم تعزيز الألواح السفلية والجانبية بأضلاع تقوية. يتم تعزيز المناطق ذات الضغط العالي بشكل خاص. حتى عند التعامل مع الأحمال الثقيلة من الحجارة المكسرة، فإنها لن تتشوه أو تتشقق، ولها عمر خدمة طويل.
2. الفولاذ المركب المقاوم للتآكل
يضمن الجمع بين WH60C وQ355B وNM400 كلا من الهيكل ومقاومة التآكل.
3. لوح تقطيع سميك 40 ملم
مقاومة لتأثيرات الحفر، ومقاومة للاهتراء، مع تردد منخفض لاستبدال لوحة القطع.
4. مكونات GET القياسية
أسنان الدلو، المحول، المسامير، والمثبتات كلها مجهزة، مما يجعل التركيب والتفكيك مريحًا، كما أن قطع الغيار سهلة الشراء.
5. إنتاج المصنع بالكامل
يتم تنفيذ القطع والمعالجة واللحام والسفع الرملي والطلاء على خط الإنتاج الخاص بالمصنع، مما يسمح بالتخصيص وفقًا لرسومات العملاء.
6. التوافق مع علامات تجارية متعددة
يمكن تخصيص هيكل توصيل الأذن، ويمكن تكييف جميع الآلات السائدة بوزن 20 طن.
