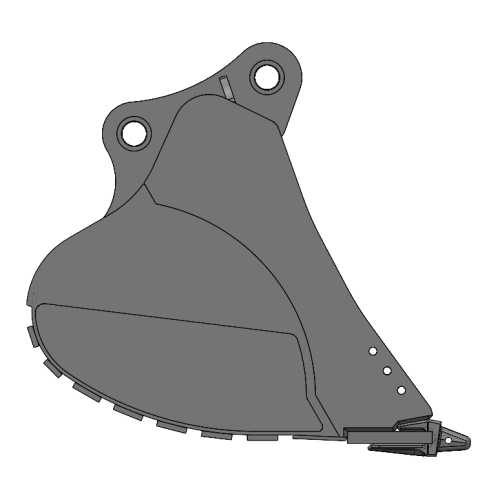

20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل
20T1.0m³ دلو الصخور الثقيل

20T1.0m³ دلو الصخور الثقيل

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج
ملخص
حواف الخام المنفجر حادة ولا تستطيع الدلاء العادية تحملها. تم تصميم هذا النموذج خصيصًا لظروف العمل هذه.
سعة 20 طن، حجم الدلو 1.0 متر مكعب، العرض 1146 ملم. متوافق مع النماذج الرئيسية مثل كوماتسو PC200/220، كاتربيلر 320/323، ساني SY205/215، XCMG XE200/215، دوسان DH220، هيتاشي ZX200.
إنها ليست كبيرة الحجم، ولكنها مجهزة وفقًا لظروف العمل الصخرية، وهي قادرة على التعامل من التربة الصلبة إلى الخام المنفجر.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings Applicable Working Conditions Compatible model
20T-1.0m³ Rock bucket 20 1 1146
WH60C
Q355B
NM400
40
Side Tooth S30119587H
Retaining Pin J350-R
Tooth Pin J350-P
Bucket Tooth 1U3352RC-S
Adapter 3G8354V
Excavation of rock, hard soil layers, broken stone, and blasted ore/rock. Compatible with mainstream 20-ton class models (e.g., Komatsu PC200/220, Caterpillar 320/323, Sany SY205/215, XCMG XE200/215, Doosan DH220, Hitachi ZX200).

الأداء الأساسي: "المبادئ الثلاثة الأساسية" لـ Guorun

تقسيم العمل للصلب
يعتبر الفولاذ المقاوم للتآكل WH60C مسؤولاً عن المنطقة المقاومة للتآكل في المقدمة، مما يقلل من التآكل؛ يدعم الفولاذ الهيكلي Q355B الإطار العام، مما يسمح للقوة بالانتشار ومنع التشوه؛ يحمي الفولاذ المدرع NM400 الجزء السفلي من الجرافة، ويمتص الصدمات. تؤدي الأنواع الثلاثة من الفولاذ واجباتها وفقًا لمواقعها، ويتم استخدام كل جرام في المكان المناسب.
تصميم سمك
لوحة الشفرة مقاس 40 مم ليست سميكة ببساطة. من خلال محاكاة إجهاد العناصر المحدودة، يتم تشتيت الضغط المركز الناتج عن الاصطدام - تكون لوحة الشفرة أقل عرضة للكسر، ويكون جسم الدلو أقل عرضة للتشقق، ويتم إطالة العمر الافتراضي بشكل كبير.
مطابقة نظام التروس
إنها مجهزة بأسنان جانبية S30119587H، أسنان دلو من سلسلة J350، مقاعد تروس، مشابك زنبركية ودبابيس أسنان. تم تعديل زاوية طرف الشفرة بشكل متكرر، مما أدى إلى انخفاض مقاومة القطع وكفاءة التكسير العالية. تسمح الواجهة القياسية J350 باستبدال التروس بسرعة ووقت توقف قصير.
