الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو الطين> دلو الطين 23 طن 1.6 متر مكعب

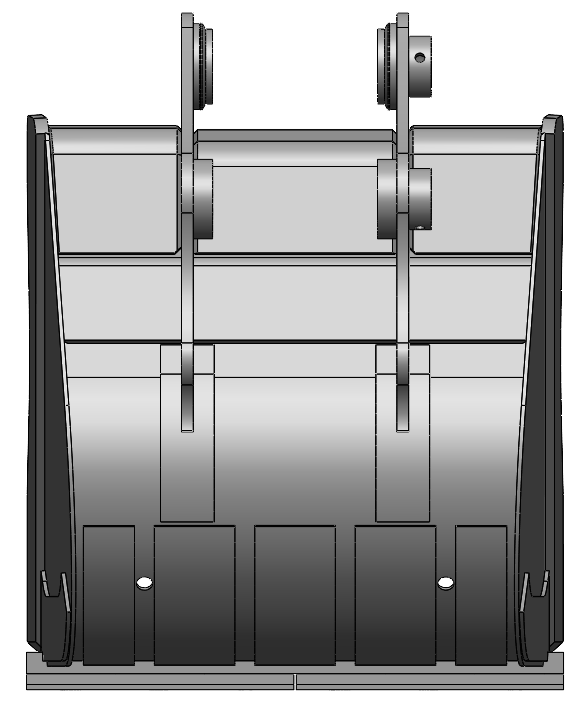

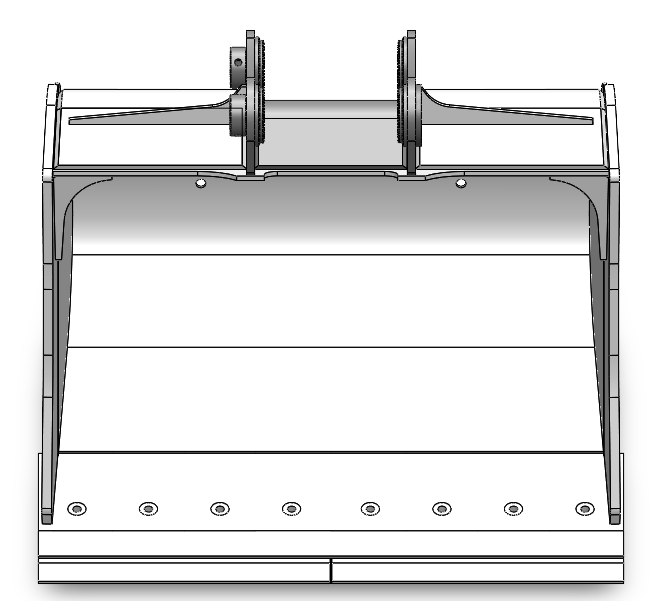

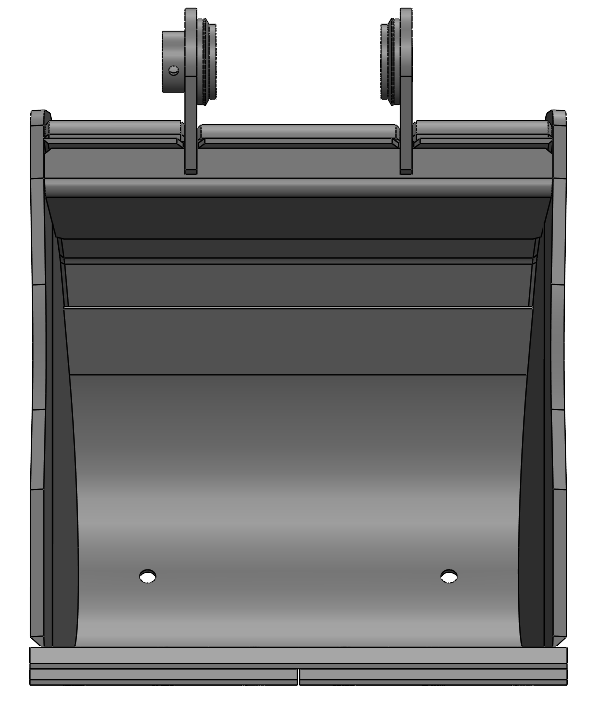

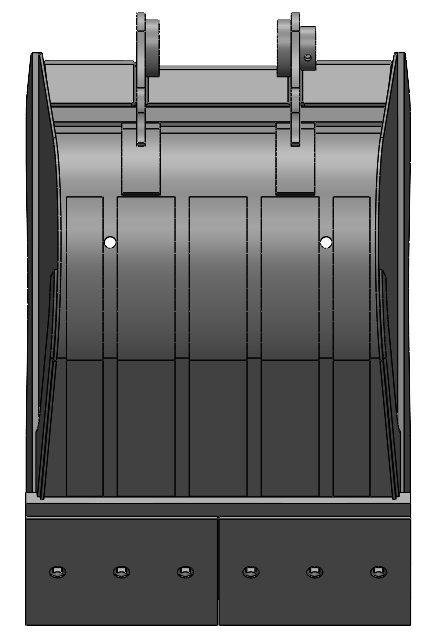

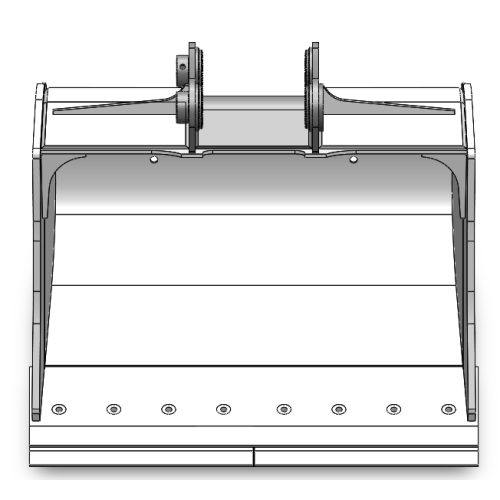

دلو الطين 23 طن 1.6 متر مكعب
دلو الطين 23 طن 1.6 متر مكعب
دلو الطين 23 طن 1.6 متر مكعب
دلو الطين 23 طن 1.6 متر مكعب
دلو الطين 23 طن 1.6 متر مكعب
دلو الطين 23 طن 1.6 متر مكعب

دلو الطين 23 طن 1.6 متر مكعب

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

تبلغ سعة دلو التجريف GRMM 23 طنًا 1.6 مترًا مكعبًا وعرض فتحة الجرافة 1800 مم. يمكنها حمل كمية كبيرة من المواد مع دورات أقل وبطبيعة الحال تتمتع بكفاءة عالية.
تحتوي الحمأة على نسبة رطوبة عالية ولزوجة عالية. الدلو التقليدي هو الأكثر إزعاجًا بمشكلة الالتصاق. يتميز هذا الطراز بهيكل مسطح مضاد للالتصاق، مع فتحة دلو مسطحة وجدار داخلي أملس. التفريغ سريع وهناك بقايا أقل. ليست هناك حاجة لهز الدلو بشكل متكرر.
من حيث المواد، فإن WH60C مقاوم للالتواء والتشوه، ويدعم Q355B الصلابة الشاملة، وNM400 عبارة عن طبقة مقاومة للتآكل يمكنها التعامل مع الرمل والأحجار المختلطة في الحمأة. يبلغ سمك لوحة الشفرة 40 مم ومن غير المحتمل أن تتشقق حتى بعد تآكلها بفعل جزيئات الماء والرمل لفترة طويلة. ليست هناك حاجة للحام المتكرر.
وهو متوافق مع JCB PC220/240، وCaterpillar 323/326، وSany SY235، وXCMG XE230، وجميعها موديلات فئة 23 طن. فتحات التثبيت مناسبة تمامًا ويمكن تركيبها مباشرة عند الوصول.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Applicable Working Conditions Compatible model
23T-1.6m³ Mud bucket 23 1.6 1800
WH60C
Q355B
NM400
40 Silt, mud, soft/slurry materials, and river dredging operations. Suitable for mainstream 23-ton models (such as Komatsu PC220/240, Caterpillar 323/326, Sany SY235, XCMG XE230, etc.),

ميزات الأداء الرئيسية

  • الشفرة المسطحة ليس لها أسنان وتوفر الوقت للتفريغ. بدون أسنان الدلو، تكون الحواف مسطحة، ولا يوجد مكان لالتصاق الطمي. يمكن تنظيفه جيدًا دفعة واحدة ولا يتطلب رج الدلو بشكل متكرر في موقع البناء.
  • يمكن للشفرة مقاس 40 مم التعامل مع الطين الصلب والصخور.
  • عندما يتم قطع الطمي المضغوط بمجرفة واحدة، يمكن أيضًا الإمساك بالحجارة الموجودة في الطين. حافة الشفرة ليست عرضة للتشوه أو البهتان.
  • المادة ذات طبقات ولا تخاف من التآكل الناتج عن الطين والماء.
  • يمكن لـ WH60C تحمل الالتواء، ويمكن لـ Q355B أن يتحمل الصلابة، ويمكن لـ NM400 أن يتحمل التآكل. كل طبقة لها وظيفتها الخاصة، ولا تتآكل بسهولة عن طريق الغمر لفترة طويلة في الطين والماء.
  • حجم الماكينة 23 طن ويمكن تركيبها مباشرة عند الوصول.
  • يتم مطابقة نوع الكابولي والدلو وفقًا للطراز السائد الذي يبلغ وزنه 23 طنًا. مواضع الثقب دقيقة، وليس هناك حاجة لإجراء تعديلات في الموقع. بمجرد التثبيت، يمكن أن يدخل إلى موقع البناء.
