الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو التعدين> دلو حفار التعدين 95T 7m³

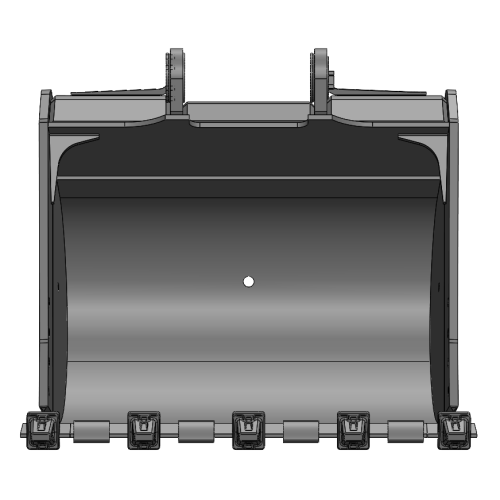

دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³
دلو حفار التعدين 95T 7m³

دلو حفار التعدين 95T 7m³

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج
ملخص
تعتبر الحفارة ذات وزن 95 طن آلة كبيرة في صناعة التعدين. تم تصميم الجرافة المجهزة بها لتكون ذات قدرة تحميل أحادية، كما أنها مطلوبة لتكون قادرة على تحمل ظروف العمل القاسية. تم تصنيع دلو التعدين سعة 7 متر مكعب وفقًا لهذه المتطلبات.
بفضل سعتها البالغة 7 أمتار مكعبة، تكون سعة التحميل الفردي أعلى بكثير من قدرة الدلاء التقليدية. في أعمال الحفر والتعدين واسعة النطاق، تصبح فجوة الكفاءة واضحة على الفور. وهو متوافق مع الطرازات السائدة التي يبلغ وزنها 95 طنًا مثل Komatsu PC850/950، وCaterpillar 374/390، وSany SY870/980. يمكن استخدامه في تجريد التعدين ومعالجة الصخور الثقيلة ومشاريع الأعمال الأرضية واسعة النطاق.
في ظل ظروف العمل القاسية مثل الصخور الصلبة، والتآكل العالي، والتشغيل المستمر، يكون الإخراج مستقرًا ومن غير المحتمل أن يحدث أي خلل.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings Applicable Working Conditions Compatible model
95T-7m³ Mining bucket 95 7 2573.5
NM450E
Q355D
Q460MD
Q690E
80
Retaining Clip DH700LOCK-HS
Pin (for forged parts) DH700APIN-HS
Retaining Clip J550LOCK
Pin 329595550PIN-HS
Side Tooth 32959550-HS
Forged Pointed Tooth (Single Rib) LD700TLF-HS
Side Tooth DH700A80-HS
Tooth Adapter DH700A80-HS
Mining operations, heavy-duty ore and rock handling, and large-scale earthwork projects. Compatible with 95-ton class ultra-large mining models (e.g., Komatsu PC850/950, Caterpillar 374/390, Sany SY870/980).

أداء المنتج

مزيج المواد
مزيج من أربعة أنواع من الألواح الفولاذية: NM450E، Q355D، Q460MD، وQ690E. تم تجهيز كل أنبوب بطبقة واحدة من هذه اللوحات، مما يعزز القوة الإجمالية لجسم الدلو.
لوحة شفرة سميكة للغاية 80 مم
من غير المرجح أن يتشوه أو يتجعد عند قطع الصخور الصلبة، وله عمر إجمالي أطول.
نظام أسنان دلو مزورة
أسنان حادة مزورة بضلع واحد + محول خاص + شفرة قطع جانبية. تتمتع بقوة اختراق جيدة ويسهل استبدالها حتى بعد التآكل.
أجزاء التوصيل الرئيسية
تم تصنيع دبابيس القفل، والمسامير، وشفرات القطع الجانبية وفقًا لمعايير الحدادة/الصب، مما يجعل الاتصال أقل احتمالًا للفشل في ظل ظروف التحميل الثقيل.
عرض الدلو 2573.5 ملم
إنها تتمتع بكفاءة تحميل عالية ولا تبدو ضخمة، مما يجعلها مناسبة للتعاون مع شاحنات التعدين الكبيرة.

خدمات التخصيص OEM/ODM

توافق النموذج
يتم تخصيصها وفقًا لمواصفات الواجهة للعلامات التجارية الكبرى مثل Komatsu، وCaterpillar، وShangyuan، وXugong، وVolvo، وما إلى ذلك، ويمكن تثبيتها.
السعة وعرض الجرافة
يمكن تصنيعها بسعات تتراوح من 3 إلى 12 متر مكعب. يتم تعديل عرض الجرافة وفقًا لكثافة المواد وبيئة العمل.
مادة
يمكن استيعاب ظروف التآكل والصدمات العالية باستخدام أنواع الفولاذ NM500 وHardox وغيرها من أنواع الفولاذ المقاومة للتآكل عالية الجودة.
لوحة الشفرة ومجموعة العتاد
يمكن تخصيص سمك لوحة الشفرة ونوع الأسنان (أسنان مسطحة / أسنان مدببة / أسنان جانبية)، وتخطيط شكل السن.
علامات اللون
يتم تصنيع لون جسم القادوس والشعار ولوحة الاسم وفقًا لمتطلبات العلامة التجارية ودعم علامات التصدير.
