الصفحة الرئيسية> قائمة المنتجات> دلو مجرفة> دلو الخندق> 15T 0.26m³ دلو حفر الخنادق

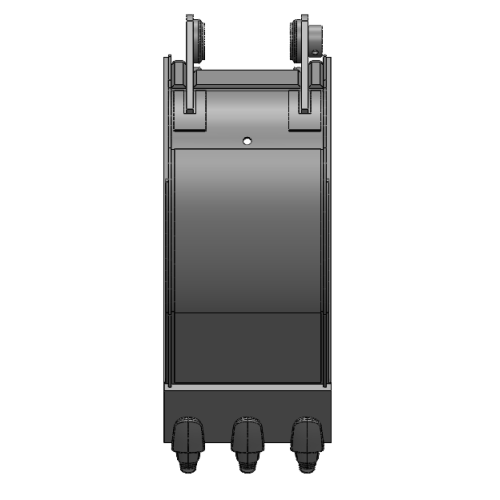

15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق
15T 0.26m³ دلو حفر الخنادق

15T 0.26m³ دلو حفر الخنادق

أحصل على آخر سعر
أدني كمية الطلب:1
التعبئة والتغليف والت...

The file is encrypted. Please fill in the following information to continue accessing it

وصف المنتج

ملخص

دلو خنادق ضيق لحفارة 15 طن، بحجم 0.26 متر مكعب وعرض 500 مم. المادة عبارة عن مركب من WH60C، Q355B، وNM400، مع سماكة شفرة 36 ​​مم ومجهزة بأسنان الدلو القياسية ZD300.
يعتبر نوع الجرافة الضيقة مثاليًا لحفر الخنادق ذات القطر الصغير، وخطوط الأنابيب البلدية، وشبكات خطوط الأنابيب. وهو متوافق مع الموديلات السائدة بوزن 15 طنًا مثل Komatsu PC160، وCaterpillar 315، وSany SY155، وXCMG XE150.
default name

تحديد

Model Bucket Type Machine Tonnage Bucket Capacity (m³) Bucket Width (mm) Main Material Cutting Edge Thickness (mm) Optional Castings Applicable Working Conditions Compatible model
15T-0.26m³ Ditch-digging bucket 15 0.26 500
WH60C
Q355B
NM400
36
Retaining Clip ZD300LK
Pin ZD300PN
Tooth Adapter Z0300T-220
Tooth Base ZD300A
Excavation operations for narrow trenches, municipal utility lines, and ditches. Compatible with mainstream 15-ton class models (Komatsu PC160, Caterpillar 315, Sany SY155, XCMG XE150, etc.)
default name

ميزات المنتج

دلو ضيق بقطر 500 مم، يتم تشكيله في خطوة واحدة
العرض الضيق يتوافق مع معيار الخندق البلدي. يتم حفرها بدقة، دون الحاجة إلى تشذيب إضافي للحواف. كمية الحفر في الأرض أقل وساعات العمل أقصر.
نظام الأسنان ZD300، الأجزاء متوفرة في كل مكان
أسنان الدلو العالمية ZD300 متوفرة في الخارج ومحليًا. بعد الطحن، يمكن استبدالها مباشرة في الموقع، لتجنب التأخير الناتج عن انتظار الأجزاء غير القياسية.
أحدث طراز NM400، جسم الجرافة WH60C
منطقة القطع مصنوعة من الفولاذ المقاوم للتآكل NM400 لمقاومة تآكل التربة والأحجار. يدعم الإطار عالي القوة WH60C الهيكل. جسم الدلو ليس عرضة للالتواء أو التشوه حتى بعد الحفر المتكرر.
لوحة شفرة 36 ​​مم، قادرة على تحمل الصدمات
يمكن للوحة القطع السميكة أن تتحمل التأثير وقوة القطع أثناء الحفر. من غير المحتمل أن يتشقق أو يتجعد، مما يقلل من الصيانة في الموقع. وهذا يتيح تنفيذ المشروع البلدي بشكل مستمر.
تتم محاذاة الثقوب بشكل مثالي وتثبيتها وبدء العمل
تم تصميمه وفقًا لأبعاد التثبيت للنموذج السائد بوزن 15 طنًا، ولا حاجة إلى أي تعديل في الموقع. يمكن تركيبه عند الوصول ويكون جاهزًا للاستخدام في موقع بناء الخندق على الفور.
default name

مزايا التصنيع

خط الإنتاج الخاص
يتم تنفيذ القطع والثني واللحام والتصنيع والرش في مصنعنا الخاص. لا يتم الاستعانة بمصادر خارجية للعمليات.
القدرة ووقت التسليم
يتم تسليم خنادق الصرف القياسية على دفعات. حتى الطلبات المخصصة للكميات الكبيرة يمكن قبولها. وقت التسليم مستقر.
ضبط الجودة
يتم فحص مواد اللوحات أولاً عند الوصول. يتم قياس الثقوب وألواح الأذن قطعة قطعة. يتم التحكم في طبقات اللحام الرئيسية من خلال العملية لتجنب مشاكل التثبيت أو الهيكلية بعد الشحن.
التخصيص
يمكن تخصيص العرض والسعة ونظام التروس والشعار وفقًا لمتطلبات الموزعين والمقاولين.
تغليف الصادرات
معالجة مضادة للصدأ + تعبئة معززة، قادرة على تحمل النقل البحري لمسافات طويلة، مما يقلل من مخاطر التلف أثناء النقل.
